Digital Sound System Control Module -J525-, PREMIUM-SOUND, THROUGH JUNE 2020: Notes

Component Location

In rear left in luggage compartment.

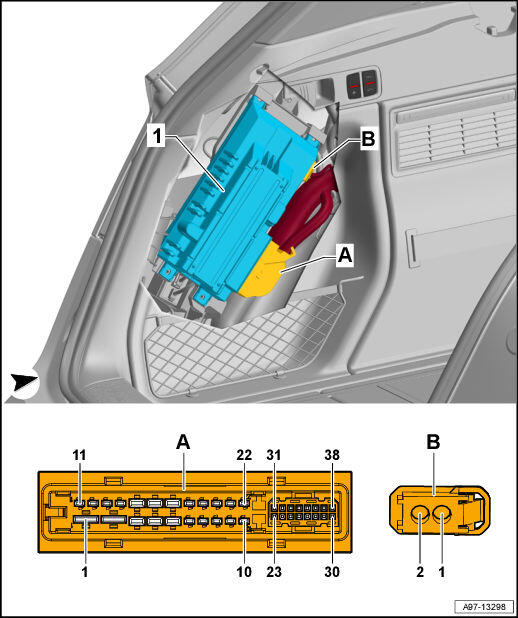

Fig 1: Digital Sound System Control Module -J525-, Premium-Sound, Through June 2020 Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Digital Sound System Control Module -J525-
2. A -  38-Pin Connector -T38-, black
3. B -  2-Pin Connector -T2vb-, black
   • MOST Bus
