Fuel Tank Leak Detection Control Module -GX36- Component Location And Connector End View: Notes

Component Location

In right side panel, above wheel housing.

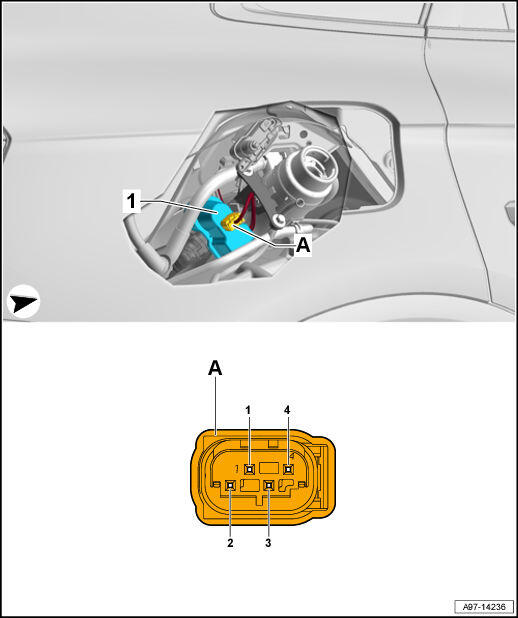

Fig 1: Fuel Tank Leak Detection Control Module -GX36- Component Location And Connector End View
GWWA97-14236Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Fuel tank leak detection control module -GX36-
  2. A -  4-Pin Connector -T4eo-, black
