Overview Of Control Modules In Rear Part Of Vehicle

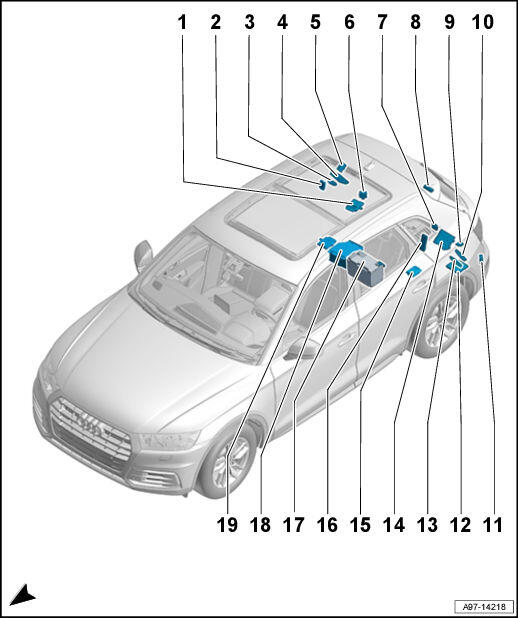

Fig 1: Identifying Control Modules In Rear Part Of Vehicle

Courtesy of AUDI OF AMERICA, LLC

1 - Reducing Agent Metering System Control Module -J880-
- Component Location REDUCING AGENT METERING SYSTEM CONTROL MODULE -J880- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Reducing Agent Metering System Control Module -J880-
2 - Amplifier for Telephone -R86-
- Component Location AMPLIFIER FOR TELEPHONE -R86- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Amplifier For Telephone -R86-, Through June 2020
2 - Fuel tank leak detection control module -GX36-
- Component Location FUEL TANK LEAK DETECTION CONTROL MODULE -GX36- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Fuel Tank Leak Detection Control Module -GX36-
3 - Auxiliary Heater RF Receiver -R64-
- Component Location AUXILIARY HEATER RF RECEIVER -R64- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements through January 2019 Pin Arrangements Auxiliary Heater RF Receiver -R64-, Through January 2019
- Pin Arrangements from January 2019 Pin Arrangements Auxiliary Heater RF Receiver -R64-, Through January 2019
4 - TV Tuner -R78-
- Component Location TV TUNER -R78- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements TV Tuner -R78-
4 - Special Purpose Vehicle Control Module -J608-
- Component Location SPECIAL PURPOSE VEHICLE CONTROL MODULE -J608- COMPONENT LOCATION AND CONNECTOR END VIEW
5 - Engine Sound Generator Control Module -J943-
- Component location, vehicles with High-Voltage System (0K3) Engine Sound Generator Control Module -J943-, MODELS WITH HIGH-VOLTAGE SYSTEM (0K3)
- Pin arrangements, vehicles with High-Voltage System (0K3) Pin Arrangements Engine Sound Generator Control Module -J943-, Through August 2023
- Component location, for models without High-Voltage System (0K3) Engine Sound Generator Control Module -J943-, MODELS WITHOUT HIGH-VOLTAGE SYSTEM (0K3)
- Pin arrangements, models without High-Voltage System (0K3) Pin Arrangements Engine Sound Generator Control Module -J943-
6 - Lane Change Assistance Control Module -J769-
- Component Location LANE CHANGE ASSISTANCE CONTROL MODULE -J769- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Lane Change Assistance Control Module -J769-
7 - Garage Door Opener Control Module -J530-
- Component Location GARAGE DOOR OPENER CONTROL MODULE -J530- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Garage Door Opener Control Module -J530-
8 - Rear View Camera System Control Module -J772-
- Component Location REAR VIEW CAMERA SYSTEM CONTROL MODULE -J772- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Rear View Camera System Control Module -J772-
9 - Rear lid opener control module -J938-
- Component Location REAR LID OPENER CONTROL MODULE -J938- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Rear Lid Opener Control Module -J938-
10 - Towing Recognition Control Module -J345-
- Component Location TOWING RECOGNITION CONTROL MODULE -J345- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Towing Recognition Control Module -J345-
11 - Lane Change Assistance Control Module 2 -J770-
- Component Location LANE CHANGE ASSISTANCE CONTROL MODULE 2 -J770- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Lane Change Assistance Control Module 2 -J770-
12 - Comfort System Central Control Module -J393-
- Component Location COMFORT SYSTEM CENTRAL CONTROL MODULE -J393- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Comfort System Central Control Module -J393-
13 - Peripheral Camera Control Module -J928-
- Component Location PERIPHERAL CAMERA CONTROL MODULE -J928- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Peripheral Camera Control Module -J928-
14 - Digital Sound System Control Module -J525-
- Component Location DIGITAL SOUND SYSTEM CONTROL MODULE -J525- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements through June 2020 Pin Arrangements Digital Sound System Control Module -J525-, Through June 2020
- Pin Arrangements from June 2020 Pin Arrangements Digital Sound System Control Module -J525-, From June 2020
15 - Voltage Converter, 48 V/12 V -A7-
- Component Location VOLTAGE CONVERTER, 48 V/12 V -A7-, FOR VEHICLES WITH 48 V HYBRID SYSTEM COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Voltage Converter, 48 V/12 V -A7-
16 - Rear Lid Control Module -J605-
- Component Location REAR LID CONTROL MODULE -J605- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Rear Lid Control Module -J605-
17 - Battery Monitoring Control Module -J367-
- Component Location for vehicles without 48 V hybrid system Battery Monitoring Control Module -J367-, FOR VEHICLES WITHOUT 48 V HYBRID SYSTEM
- Component Location for vehicles with 48 V hybrid system Battery Monitoring Control Module -J367-, FOR VEHICLES WITH 48 V HYBRID SYSTEM
- Pin arrangement without 48 V hybrid system Pin Arrangements Battery Monitoring Control Module -J367-
- Pin arrangement with 48 V hybrid system Pin Arrangements Battery Monitoring Control Module -J367-
18 - Auxiliary Battery -A1-
- Component Location AUXILIARY BATTERY -A1- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Auxiliary Battery -A1-
18 - Battery, 48 V -A6-
- Component Location BATTERY, 48 V -A6-, FOR VEHICLES WITH 48 V HYBRID SYSTEM COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Battery, 48 V -A6-
19 - Differential lock control module -J187-
- Component Location DIFFERENTIAL LOCK CONTROL MODULE -J187- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Differential Lock Control Module -J187-
- for vehicles with 48 V hybrid system, deviating installation position
