Peripheral Camera Control Module -J928- Component Location And Connector End View: Notes

Component Location

In left luggage compartment, behind luggage compartment side panel trim.

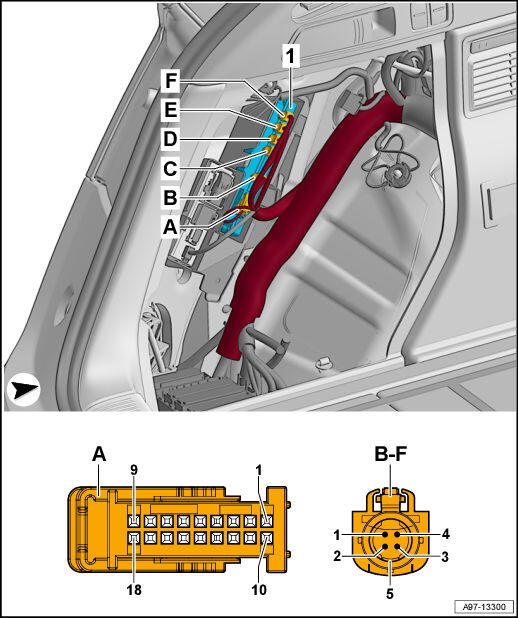

Fig 1: Peripheral Camera Control Module -J928- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Peripheral Camera Control Module -J928-
2. A -  18-Pin Connector -T18a-, black
3. B -  5-Pin Connector -T5o-, brown
4. C -  5-Pin Connector -T5i-, green
5. D -  5-Pin Connector -T5k-, black
6. E -  5-Pin Connector -T5m-, white
7. F -  5-Pin Connector -T5n-, blue
