Rear Lid Control Module -J605- Component Location And Connector End View: Notes

Component Location

In left luggage compartment, behind luggage compartment side panel trim.

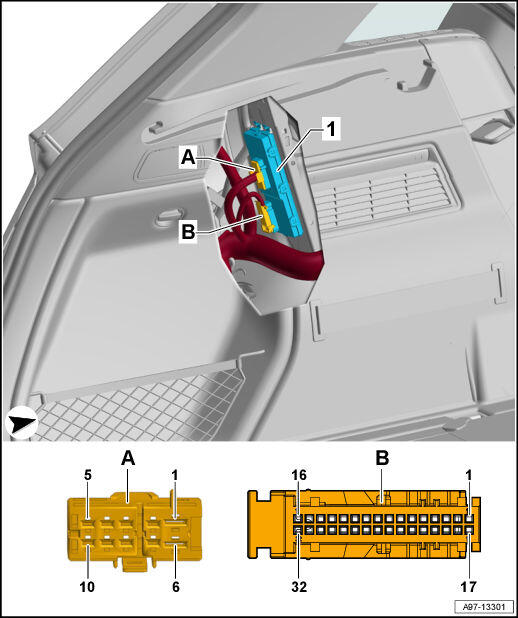

Fig 1: Rear Lid Control Module -J605- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Rear Lid Control Module -J605-
2. A -  10-Pin Connector -T10q-, black
3. B -  32-Pin Connector -T32e-, black
