Rear View Camera System Control Module -J772- Component Location And Connector End View: Notes

Component Location

In rear lid button handle.

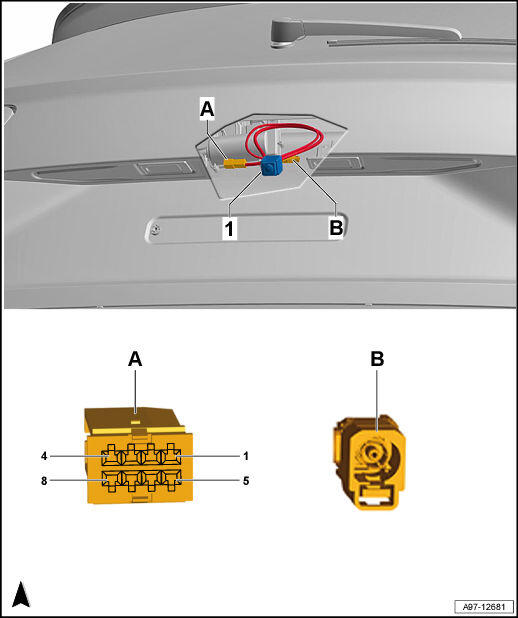

Fig 1: Rear View Camera System Control Module -J772- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Rear View Camera System Control Module -J772-
2. A -  8-Pin Connector -T8k-, black
3. B -  2-Pin Connector -T2z-, gray
