Reducing Agent Metering System Control Module -J880- Component Location And Connector End View: Notes

Component Location

In right luggage compartment, behind side panel trim.

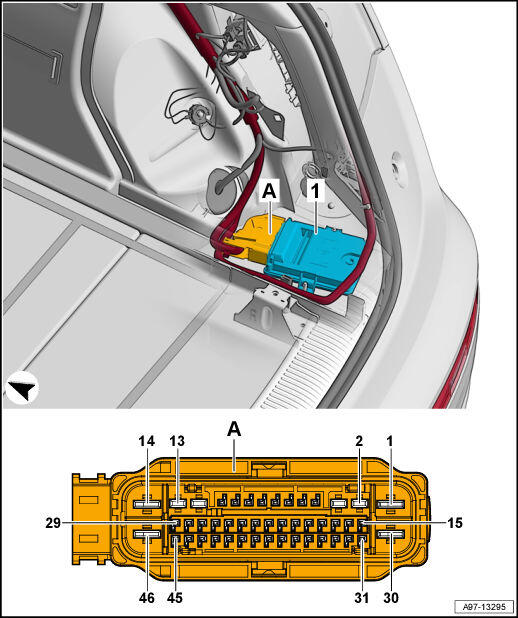

Fig 1: Reducing Agent Metering System Control Module -J880- Component Location And Connector End View
GWWA97-13295Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Reducing Agent Metering System Control Module -J880-
  2. A -  46-Pin Connector -T46a-, black
