Towing Recognition Control Module -J345- Component Location And Connector End View: Notes

Component Location

In left luggage compartment, behind luggage compartment side panel trim.

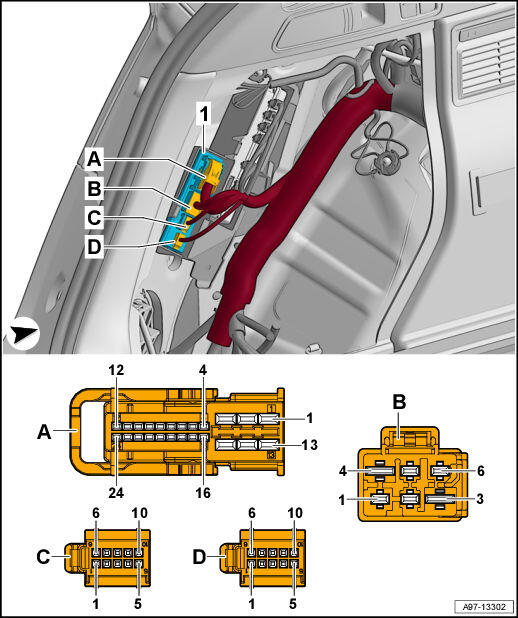

Fig 1: Towing Recognition Control Module -J345- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Towing Recognition Control Module -J345-
2. A -  24-Pin Connector -T24-, black
3. B -  6-Pin Connector -T6e-, black
4. C -  10-Pin Connector -T10i-, black
5. D -  10-Pin Connector -T10k-, red
