Engine Left

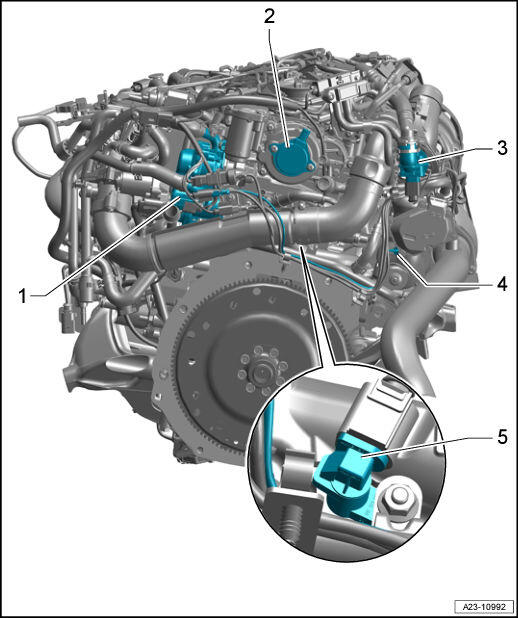

Fig 1: Identifying Left Side Of Engine Components (2.0L TDI DFVA)
GWWA23-10992Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  EGR motor -V338-
  2. 1 -  EGR potentiometer -G212-
  3. 2 -  Camshaft adjustment valve 1 -N205-
  4. 3 -  Positive crankcase ventilation heating element -N79-
  5. 4 -  EGR temperature sensor -G98-
  6. 5 -  Engine coolant temperature sensor -G62-
