EVAP System, With Fuel Tank Leak Detection Module -GX36-

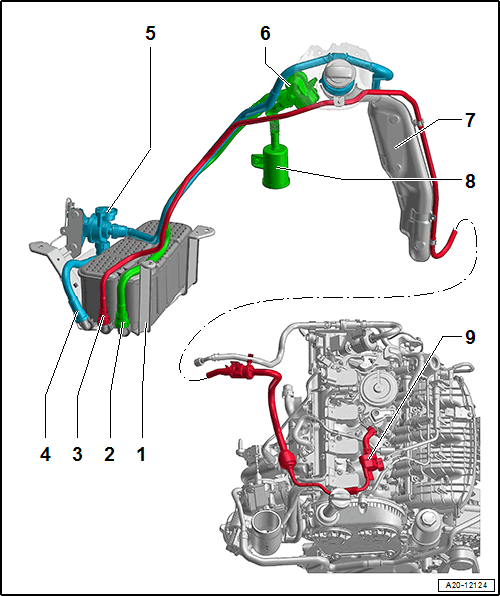

Fig 1: Identifying EVAP System Components, With Fuel Tank Leak Detection Module -GX36-

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  EVAP Canister
2. 2 -  Bleeder Line
   • To the Fuel Tank Leak Detection Module -GX36-
3. 3 -  Bleeder Line
   • To the EVAP Canister Purge Regulator Valve 1 -N80-
4. 4 -  Bleeder Line
   • To Tank Switch-Off Valve -N288-
5. 5 -  Tank Switch-Off Valve -N288-
   • Installed depending on the vehicle version
6. 6 -  Fuel Tank Leak Detection Module -GX36-
7. 9 -  EVAP Canister Purge Regulator Valve 1 -N80-
   • Tank Ventilation Pressure Sensor 1 -G950-
   • The Tank Ventilation Pressure Sensor 1 -G950- is installed in the breather line to the EVAP canister, depending on the emissions standard.
