Battery Monitoring Control Module -J367-, FOR VEHICLES WITHOUT 48 V HYBRID SYSTEM: Notes

Component Location

on negative terminal of Battery -A-.

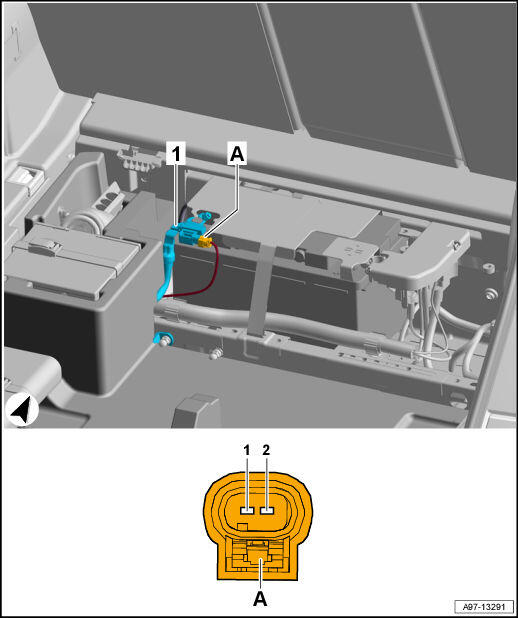

Fig 1: Battery Monitoring Control Module -J367- Component Location And Connector End View (Vehicles Without 48 V Hybrid System)

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Battery Monitoring Control Module -J367-
2. A -  2-Pin Connector -T2x-, black
