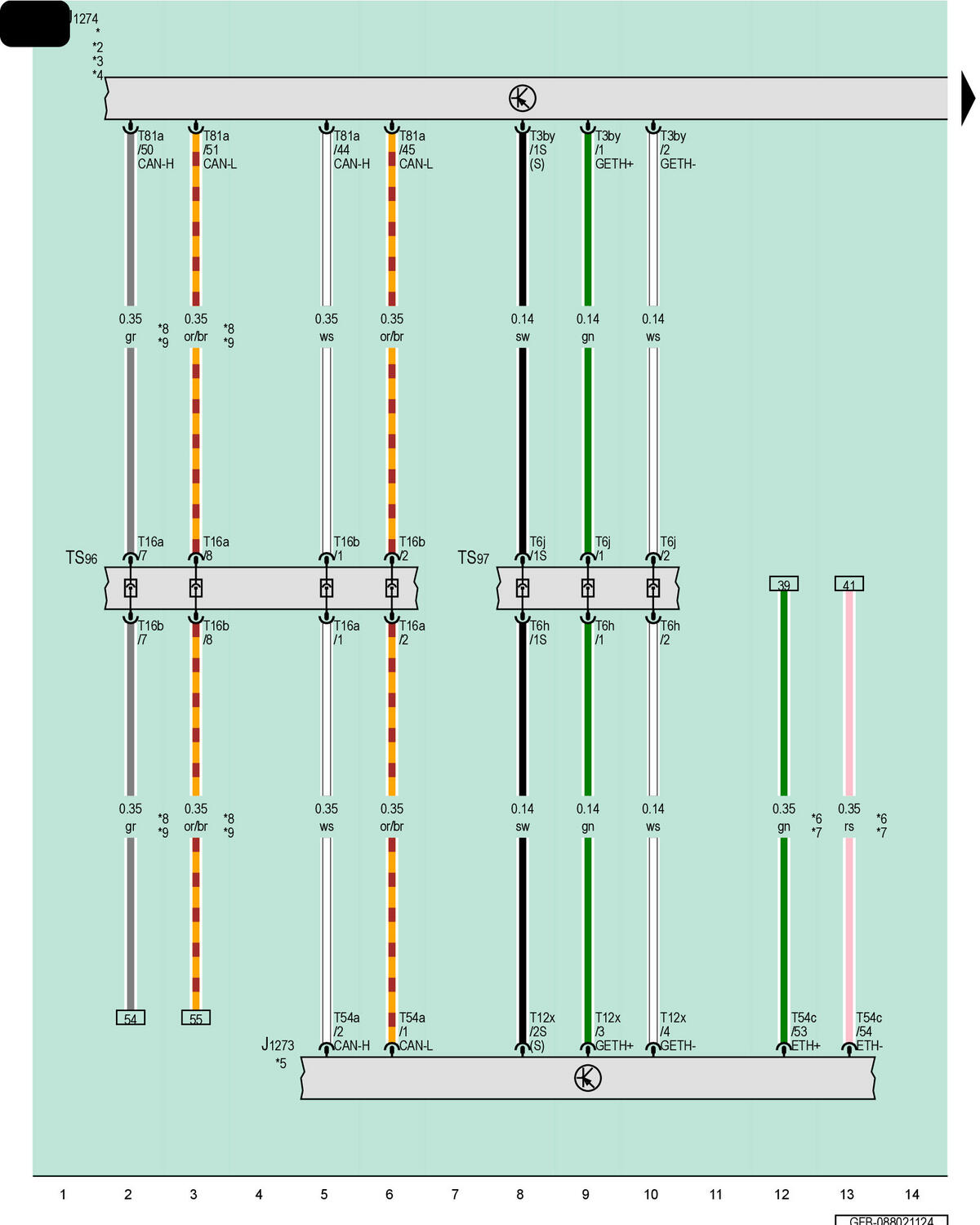

Central Control Module For Data Bus Communication, Autonomous Driving Control Module 1
J1273
Central Control Module for Data Bus Communication
J1274
Autonomous Driving Control Module 1
T3by
3-Pin Connector, Green
T6h
6-Pin Connector, Black
T6j
6-Pin Connector, Black
T12x
12-Pin Connector, Black
T16a
16-Pin Connector, Black
T16b
16-Pin Connector, Black
T54a
54-Pin Connector, Blue
T54c
54-Pin Connector, Gray
T81a
81-Pin Connector, Black
TS96
Measurement Connector Coupling Point 1
TS97
Measurement Connector Coupling Point 2
*
Refer to the Applicable Assistance Systems Wiring Diagram
*2
For Vehicles with Driver Assistance Systems Front Camera
*3
Refer to Applicable Lane Change Assistance Wiring Diagram
*4
Refer to Applicable Peripheral Camera Wiring Diagram
*5
Refer to Applicable Wiring Diagram for Central Control Module for Data Bus Communication
*6
For Vehicles Without Radio-Controlled Parking
*7
For Vehicles Without Driving Assistance
*8
For Vehicles with China Equipment
*9
From February 2025
