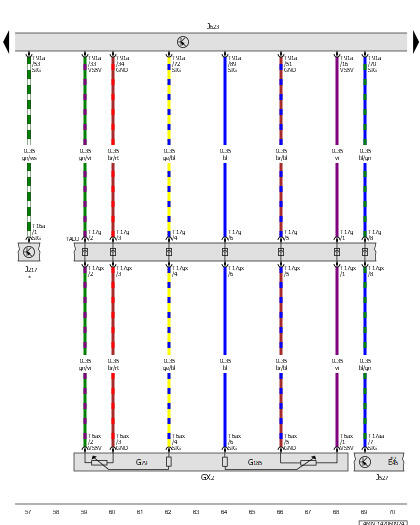

Accelerator Pedal Module, Transmission Control Module, Steering Column Electronics Control Module, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

E45

Cruise Control Switch

GX2

Accelerator Pedal Module

G79

Accelerator Pedal Position Sensor

G185

Accelerator Pedal Position Sensor 2

J217

Transmission Control Module

J527

Steering Column Electronics Control Module

J623

Engine/Motor Control Module

T6ax

6-Pin Connector, Black

T16a

16-Pin Connector, Black

T17aa

17-Pin Connector, Yellow

T17g

17-Pin Connector, White

T17gx

17-Pin Connector, White

T91a

91-Pin Connector, Black

TALU

Coupling Point on Left A-Pillar, Bottom

*

Refer to Applicable Wiring Diagram for Automatic Transmission

*2

For Vehicles with Cruise Control System
