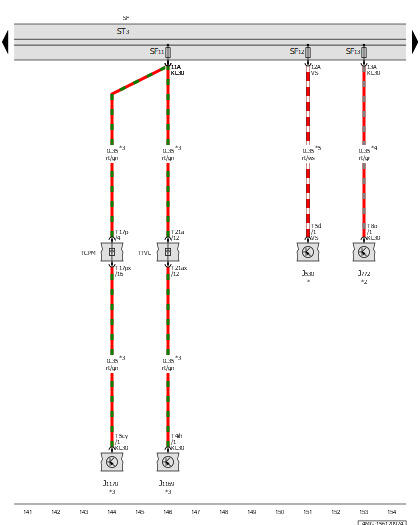

Garage Door Opener Control Module, Rearview Camera System Control Module, Near Field Communication Control Module, Near Field Communication Control Module 2, Fuse Panel F, Fuse Panel 3

Courtesy of AUDI OF AMERICA, LLC

J530

Garage Door Opener Control Module

J772

Rearview Camera System Control Module

J1169

Near Field Communication Control Module

J1170

Near Field Communication Control Module 2

SF

Fuse Panel F

ST3

Fuse Panel 3

SF11

Fuse 11 (On Fuse Panel F)

SF12

Fuse 12 (On Fuse Panel F)

SF13

Fuse 13 (On Fuse Panel F)

T4ih

4-Pin Connector, Black

T5cy

5-Pin Connector, Black

T5d

5-Pin Connector, Black

T8o

8-Pin Connector, Black

T17p

17-Pin Connector, Black

T17px

17-Pin Connector, Blue

T21a

21-Pin Connector, Black

T21ax

21-Pin Connector, Black

TCPM

Coupling Point on Instrument Panel, Center

TTVL

Left Front Door Coupling Point

*

Refer to Applicable Wiring Diagram for the Garage Door Opener

*2

Refer to Applicable Wiring Diagram for the Rearview Camera (Rear Assist)

*3

Depending on Equipment

*4

For Vehicles with Rearview Camera System

*5

For Vehicles with Garage Door Opener
