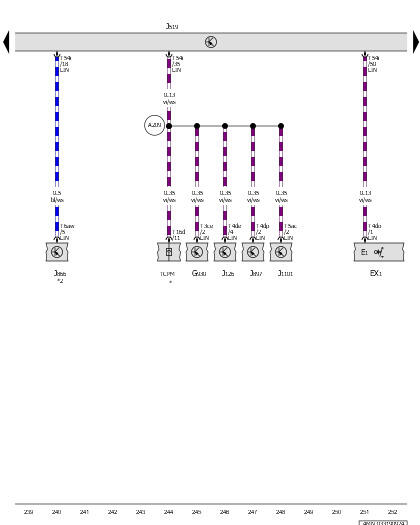

Rotary Light Switch, A/C System Particulate Matter Concentration Sensor, Fresh Air Blower Control Module, Vehicle Electrical System Control Module, Power Adjustable Steering Column Control Module, Ionizer Control Module, Fragrance Diffuser System Control Module

Courtesy of AUDI OF AMERICA, LLC

E1

Light Switch

EX1

Rotary Light Switch

G930

A/C System Particulate Matter Concentration Sensor

J126

Fresh Air Blower Control Module

J519

Vehicle Electrical System Control Module

J866

Power Adjustable Steering Column Control Module

J897

Ionizer Control Module

J1101

Fragrance Diffuser System Control Module

T3ce

3-Pin Connector, Blue

T4de

4-Pin Connector, Black

T4do

4-Pin Connector, Red

T4dp

4-Pin Connector, Black

T5ac

5-Pin Connector, Black

T6aw

6-Pin Connector, Brown

T16d

16-Pin Connector, Black

T54i

54-Pin Connector, Black

TCPM

Coupling Point on Instrument Panel, Center

A209

LIN Bus Connection 1 (in Instrument Panel Wiring Harness)

*

Refer to Applicable A/C System Wiring Diagram

*2

Refer to Applicable Power Steering Column Adjustment Wiring Diagram
