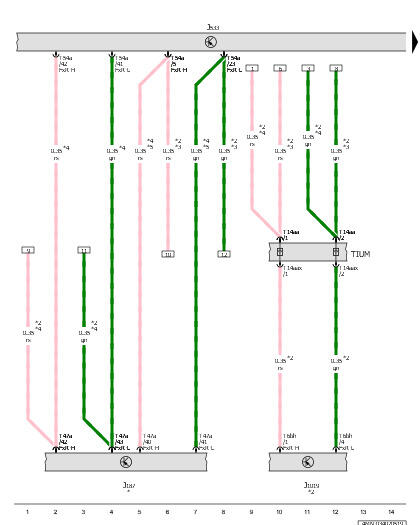

Differential Lock Control Module, Data Bus On Board Diagnostic Interface, Rear Axle Steering Control Module

Courtesy of AUDI OF AMERICA, LLC

J187

Differential Lock Control Module

J533

Data Bus on Board Diagnostic Interface

J1019

Rear Axle Steering Control Module

T6bh

6-Pin Connector, Black

T14aa

14-Pin Connector, Black

T14aax

14-Pin Connector, Black

T47a

47-Pin Connector, Black

T54a

54-Pin Connector, Black

TIUM

Coupling Point in Interior, Bottom Center

*

Refer to Applicable AWD Wiring Diagram

*2

For Vehicles with Rear Axle Steering

*3

For Vehicles Without All Wheel Drive

*4

For AWD Vehicles

*5

For Vehicles Without Rear Axle Steering
