Vehicle Electrical System Control Module, Front Roof Module

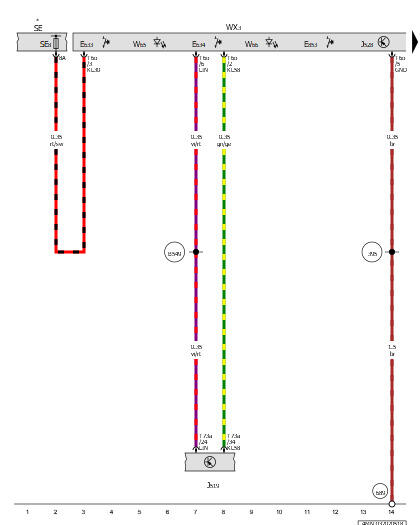

GWW4MN-032020518Courtesy of AUDI OF AMERICA, LLC

E633

Left Front Reading Lamp Button

E634

Right Front Reading Lamp Button

E853

Automatic Interior Light Switch Button

J519

Vehicle Electrical System Control Module

J528

Roof Electronics Control Module

SE

Fuse Panel E

SE8

Fuse 8 on Fuse Panel E

T6o

6-Pin Connector, Black

T73a

73-Pin Connector, Black

WX3

Front Roof Module

W65

Left Front Reading Lamp

W66

Right Front Reading Lamp

395

Ground Connection 30 (in Main Wiring Harness)

689

Ground Connection on Roof, Center Front

B549

LIN Bus Connection 2 (in Main Wiring Harness)

Refer to Applicable Wiring Diagram for Fuse Positions
