Sub-System Wiring Diagrams - Fuel Injection Systems: Wiring Diagram

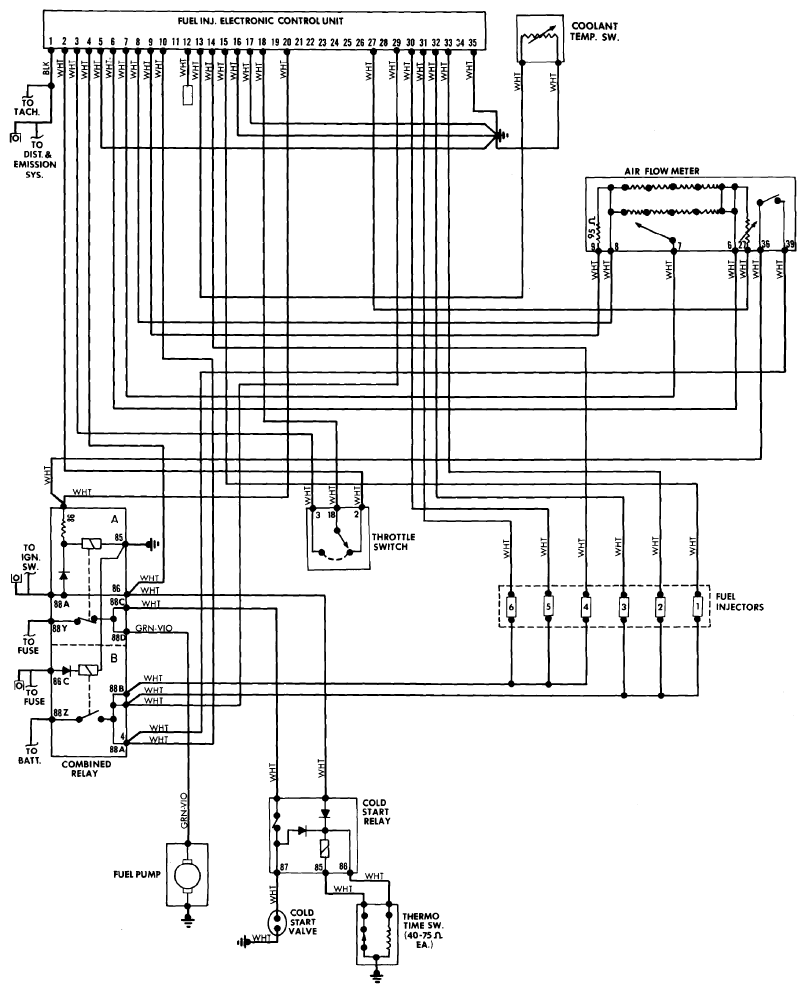

Fig 1: Fuel Injection System Wiring Diagram (BMW 633CSi and 733i)
G09303600Courtesy of BMW OF NORTH AMERICA, INC.
