Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

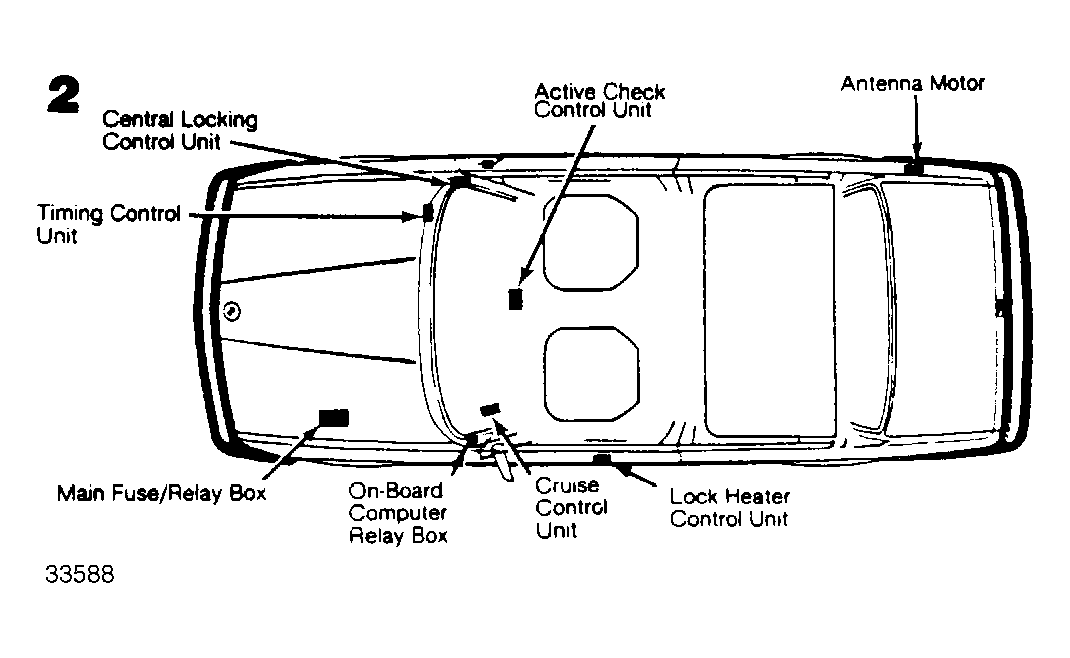

| Active Check Control Unit | Above rear view mirror. See Figure . |
| Central Locking Control Unit | Above right front speaker. See Figure . |
| Cruise Control Unit | Mounted on left under dash cover. See Figure . |
| Glow Plug Control Unit | On left front wheelwell, near main fuse/relay box. See Figure . |
| Interior Light Timer Control Unit | Under left side of dash. |
| Lock Heater Control Unit | In left front door. See Figure . |
| Service Interval Control Unit | Above glove box. |
| Timing Control Unit | Above glove box. See Figure . |
| Wiper Control Unit | In main fuse/relay box. See Figure . |
