Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

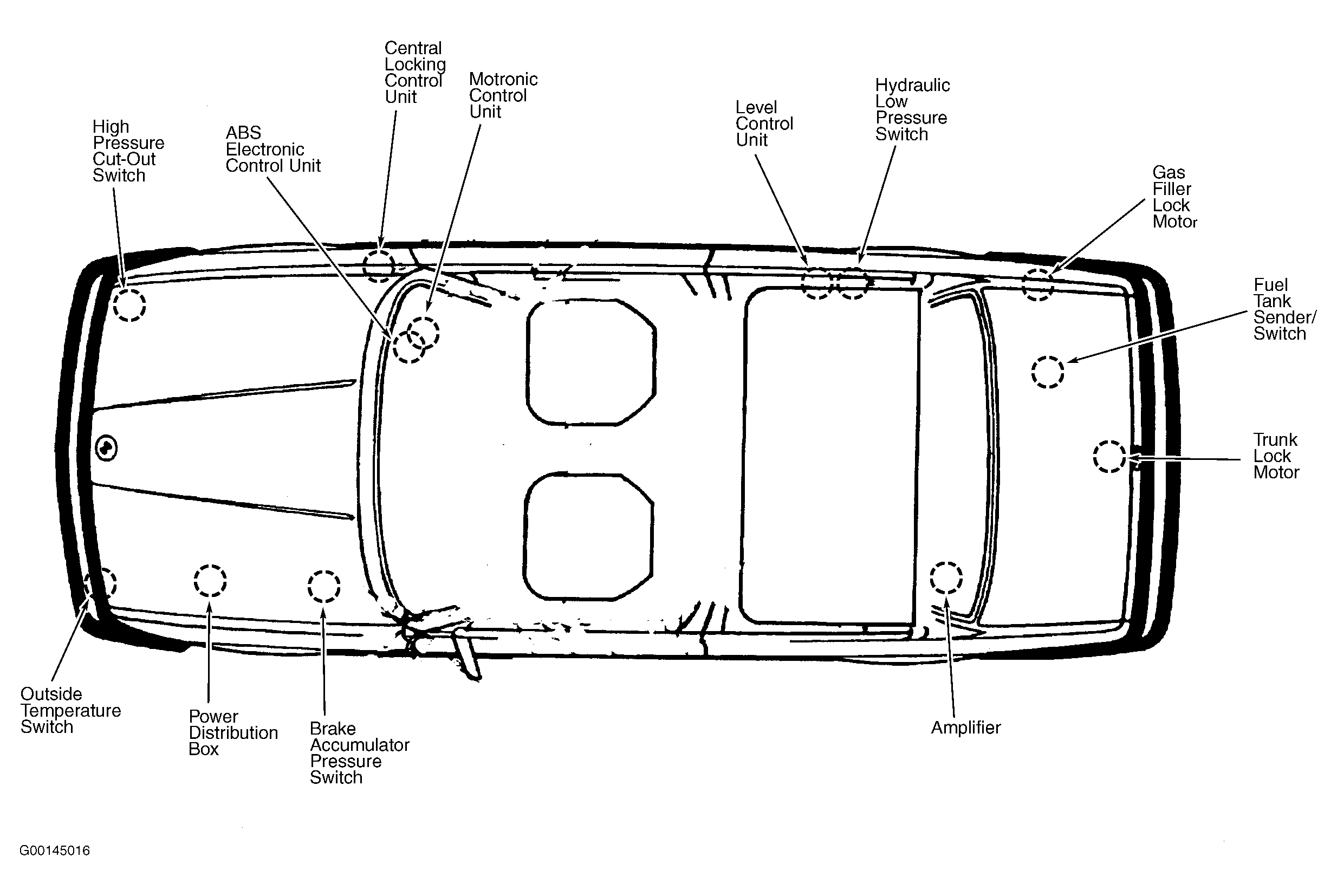

| ABS Electronic Control Unit | Under right side of dash. See Figure . |
| ABS Hydraulic Unit | At right front of engine compartment. |
| Active Check Control Unit | Above rear view mirror. |
| Central Locking Control Unit | Behind right kick panel. See Figure . |
| Chime Module | Under left side of dash. |
| Cruise Control Unit | Under left side of dash. |
| Hydraulic Height Level Control System | In luggage compartment, under spare tire. |
| Idle Speed Control Unit | Above glove box. |
| Interior Light Timer Control | Under left side of dash. |
| Level Control Unit | In front of right rear axle. See Figure . |
| Lock Heater Control Unit | In left front door. |
| Motronic Control Unit | Above glove box. See Figure . |
| On-Board Computer Module | Right of instrument cluster. |

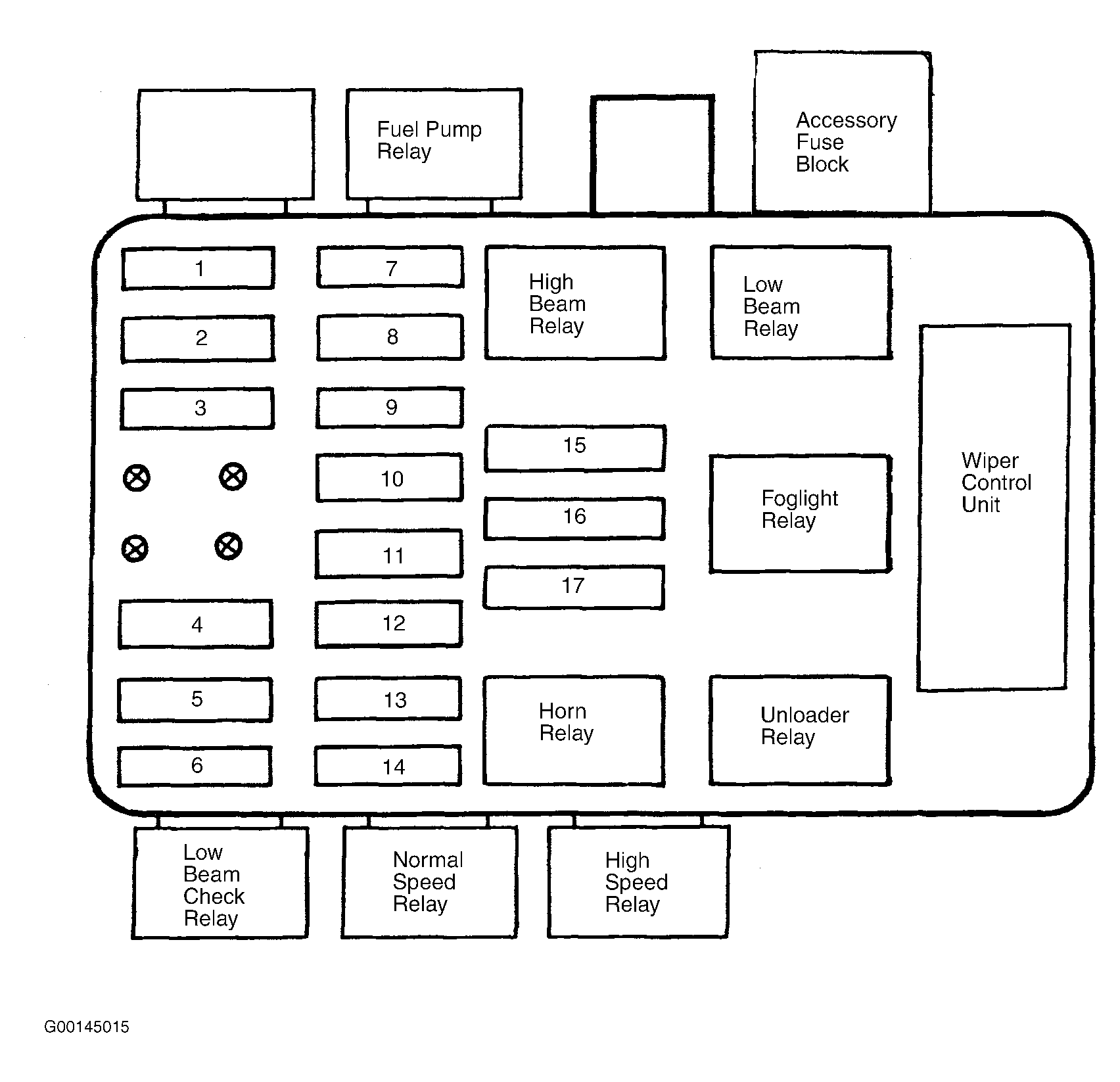

| Wiper Control Unit | On power distribution box. See Figure . |
