| Camshaft Bearing Cap Bolts |
11 (15) |
| Camshaft Sprocket Bolts |
16 (22) |
| Connecting Rod Bolts |
| Step 1 |
17 (23) |
| Step 2 (Torque Angle) |
70 Degrees |
| Coolant Drain Plug (Crankcase) |
36-40 (49-54) |
| Cooling Fan Nut |
22 (30) |

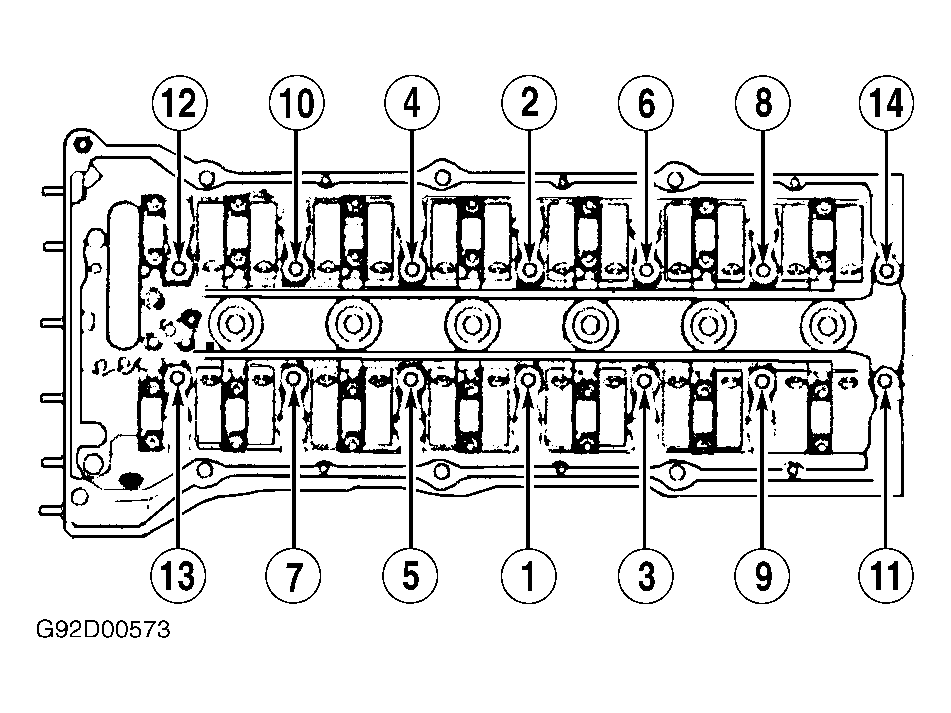

| Cylinder Head Bolts |
| Step 1 |
22-26 (30-35) |
| Step 2 (Torque Angle) |
90 Degrees |
| Step 3 (Torque Angle) |
90 Degrees |
| Exhaust Manifold Nuts |
14 (19) |
| Flywheel-To-Crankshaft Bolts |
83-96 (113-130) |
| Front/Rear Crankshaft End Cover Bolts (M8) |
16 (22) |
| Intake Manifold Bolts |
11 (15) |
| Main Bearing Cap Bolts |
| Step 1 |
14-18 (19-24) |
| Step 2 (Torque Angle) |
50 Degrees |
| Oil Filter Cover |
20-24 (27-33) |
| Oil Filter Housing Bolts |
15-18 (20-24) |
| Oil Pan Cover Bolts (M8) |
15 (20) |
| Oil Pump Sprocket Nut |
18 (24) |
| Suspension Bar-To-Cylinder Head |
15-18 (20-24) |
| Starter Bolts |
35-37 (47-50) |
| Timing Chain Tensioner Piston Cylinder |
36-38 (49-52) |
| Timing Chain Tensioner Plug |
28-31 (38-42) |
| Upper/Lower Timing Case Cover Bolts (M8) |
16 (22) |
| Vibration Damper Bolts |
17 (23) |
| Vibration Damper Hub Bolt |
288-317 (390-430) |
| Water Pump Bolts (M8) |
16 (22) |
| INCH Lbs. (N.m) |
| Cylinder Head Bolts (M6 Torx) |
86 (10) |
| Cylinder Head Cover Bolts |
86 (10) |
| Front/Rear Crankshaft End Cover Bolts (M6) |
79 (9) |
| Fuel Injectors-To-Intake Manifold |
79-96 (9-11) |
| Oil Pan Cover Bolts (M6) |
79 (9) |
| Oil Pump Cover Bolts |
79 (9) |
| Thermostat Housing Bolts |
79 (9) |
| Upper/Lower Timing Case Cover Bolts (M6) |
79-96 (9-11) |
| Water Pump Bolts (M6) |
79 (9) |
| Water Pump Pulley Bolts |
79 (9) |
