Testing Adapter Set For Air Conditioning System Components (04 24 08)

Publication date: 2008-07-21
Reference number: 04 24 08

TESTING ADAPTER SET FOR AIR CONDITIONING SYSTEM COMPONENTS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B04 24 08, Date of Issue: July 2008

BMW:	All
GROUP:	Tools and Equipment

SUBJECT

Testing Adapter Set for Air Conditioning System Components

SITUATION

Distribution of the following tool will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your Regional Distribution Center (RDC).

Testing Adapter Set

Order PN 83 30 0 496 222

Cartool PN 645 120

This tool is used for leak-testing the air conditioning system condenser and evaporator. These adapters can only be used in conjunction with the following tools and equipment:

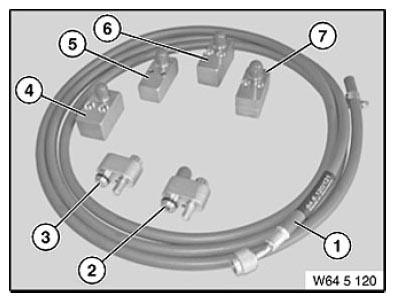

Fig 1: Identifying Testing Adapter Set (645 122 (83 30 0 496 224))

Nitrogen (in pressurized bottles) - not supplied
Pressure leak down gauge with a measuring range of at least 10 bar - to be supplied; see below
For more details, refer to Repair Instructions:
645 121 (83 30 0 496 223) Connecting hose
645 122 (83 30 0 496 224) Testing adapter for air conditioning condenser
645 123 (83 30 0 496 258) Plug for air conditioning system condenser
645 124 (83 30 0 496 259) Test adapter for evaporator - E81, E82, E87, E88, E90, E91, E92, E93
645 125 (83 30 0 496 260) Test adapter for evaporator - E46, E83, E70
645 126 (83 30 0 496 299) Test adapter for evaporator - E60, E61, E63, E64
645 127 (83 30 0 496 300) Test adapter for evaporator - E85, E86
- In many cases, the leak detector is not sufficient when checking leaks in air conditioning system components. The leak detector is unable to detect very minor leaks. In cases of difficult access, it may also not be possible to locate a leak precisely with the leak detector. Test adapters have been developed so that the air conditioning components can be checked for leaks with a pressure test.

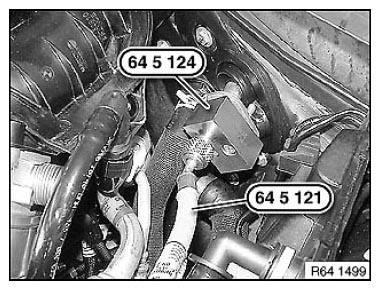

- Slowly pressurize the evaporator to a maximum of 10 bar. Be sure to follow all safety precautions when working with compressed gas.
- A gauge set to be used with compressed nitrogen is in the process of production. It will be sent out via the ATS program as soon as it is available. Look for a Group 04 SIB.
- For test details, refer to SI B64 01 08 and the Repair Manual Group 64.

  Fig 2: Identifying Connecting Hose And Air Conditioning System Plug
