UPDATED TRANSMISSION CONTROL MODULE EPROM

TECHNICAL SERVICE BULLETIN

Reference Number(s): 24 03 94, Date of Issue: December, 1997

BMW:	540iA, 740iA/iL (E32) and 840iA with EGS (9.20)
GROUP:	24 - Automatic Transmission

Superceded Bulletin(s): 24 03 94, Date of Issue: June, 1996

NOTE: This Service Information bulletin supersedes S.I. 24 03 94 dated June, 1996 which should be removed and discarded from your S.I. binder.

SUBJECT

Updated Transmission Control Module EPROM

SYMPTOMS

An updated transmission control module EPROM is available for the models listed above and will address the following complaints:

- Harsh 1-2, 2-3 upshifts under light acceleration.
- Harsh 1-2, 3-4 upshift under full load.
- Harsh 5-4 & 5-3 downshift under full load and kickdown.
- Harsh 1-2 upshift under load, harsh 3-2 downshift while coasting.
- Trans Program displayed on the instrument cluster matrix display and any of the following fault codes may be stored in the transmission control module:
1. -- 1, 4, 5, 29 and 51 -- 42 -- 100 -- 105 -- 106
- Vibration under light load with torque converter clutch closed.

CORRECTION

To address the above listed complaints several changes have been made to the original EGS transmission shift program.

Verify that the latest EGS EPROM is installed by checking the tester software number or data status number on the EGS identification screen.

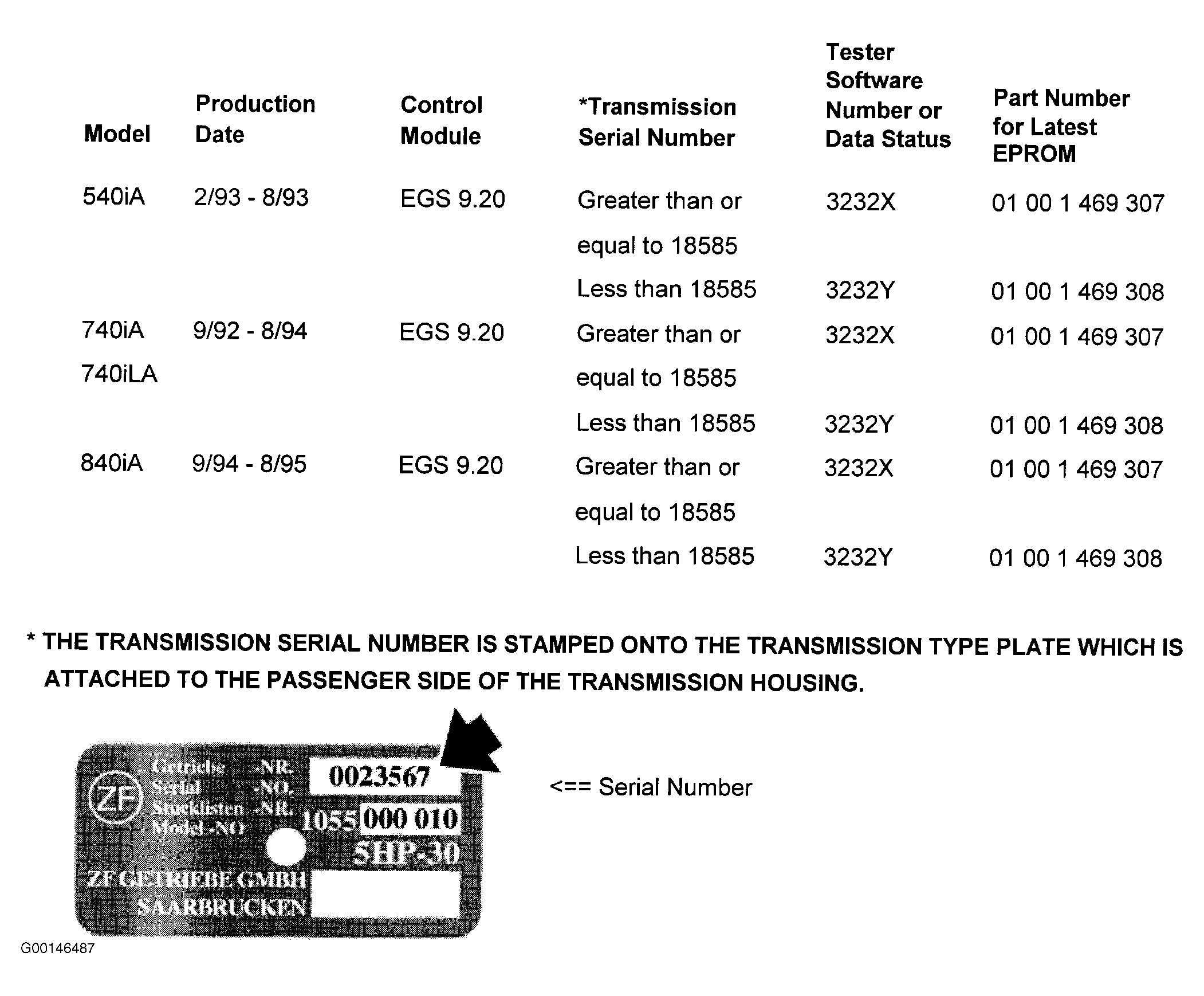

The table shown in Fig 1 , identifies the latest software number or data status that will be displayed on the EGS identification screen of the DIS or MoDiC, if the latest EPROM is installed.

Fig 1: Software Number/Data Status Table

NOTE: The EGS EPROM must also be replaced with a 3232X if:

- The valve body is replaced on a transmission with a serial number less than 18585.

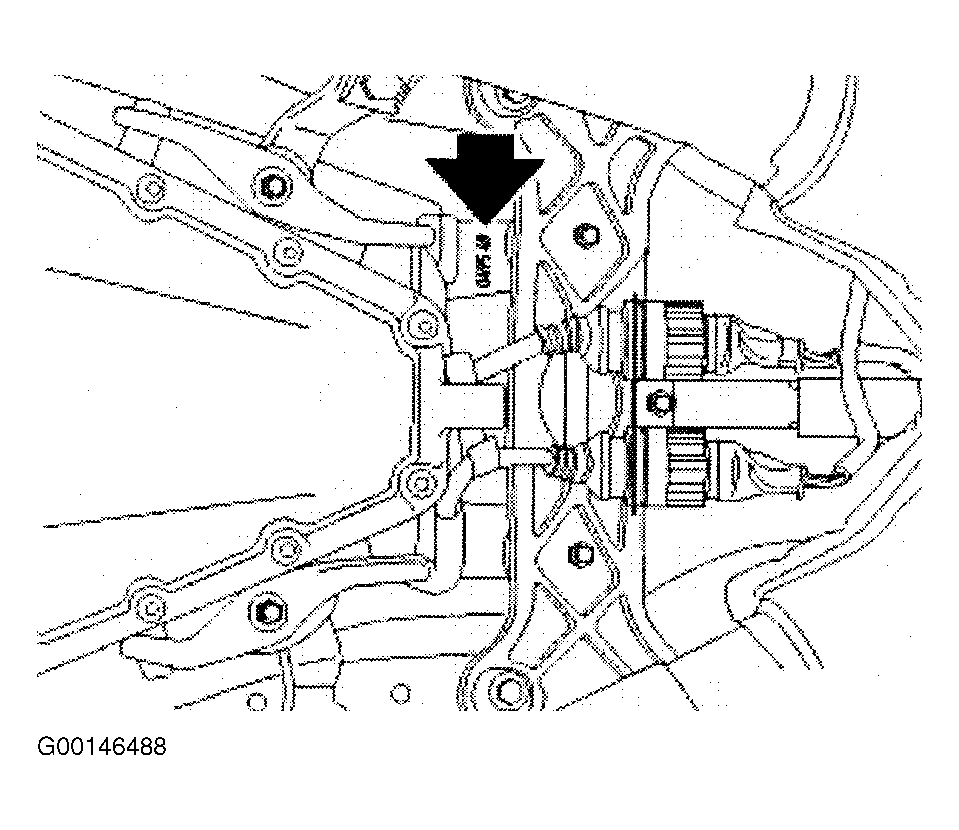

- A replacement transmission is installed. The replacement transmission can be identified by a date stamp located on the extension housing, as indicated by the arrow in Fig 2 .

Fig 2: Date Stamp Location On Replacement Transmission

HINT: The transmission adaptation values stored in the control module should always be cleared after an EPROM replacement, valve body work, or when the transmission is replaced.

PROCEDURE

In case of a customer complaint.

Install the latest EGS transmission EPROM if the tester software number or the data status does not reflect what is shown in the table above. Please refer to TECHNICAL SERVICE BULLETIN 24 05 95 (4294) for instructions on removing and installing the EPROM.
Once the new EPROM is installed or if any valve body work is performed on the transmission clear the adaptation values stored in the control module using the MoDiC or DIS.
To clear adaptation values select:
1. EGS diagnostics
2. "5. Special Functions"
3. "3. Pressure - adaptation values"
4. Depress ( button to activate the clear function.

PARTS INFORMATION

Part Number	Description
01 00 1 469 307	EPROM EGS (3232X)
01 00 1 469 308	EPROM EGS (3232Y)

WARRANTY INFORMATION

Covered under the terms of the BMW New Car Limited Warranty.

WARRANTY INFORMATION

Defect Code	Labor Operation	Labor Allowance
24 00 26 63 00	24 61 501 - Remove and install control module	2 FRU
24 00 26 63 00	24 00 000 - Exchange EPROM	2 FRU
