Light Check Module Test Cable (04 15 96)

Publication date: 1996-03-01
Reference number: 04 15 96

LIGHT CHECK MODULE TEST CABLE

TECHNICAL SERVICE BULLETIN

Reference Number(s): 04 15 96, Date of Issue: March, 1996

BMW:	E38, E39
GROUP:	04 - Tools and Equipment

Light Check Module Test Cable

Distribution of the following tool will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC.

Adapter Cable LCM P/N 90 88 6 630 400

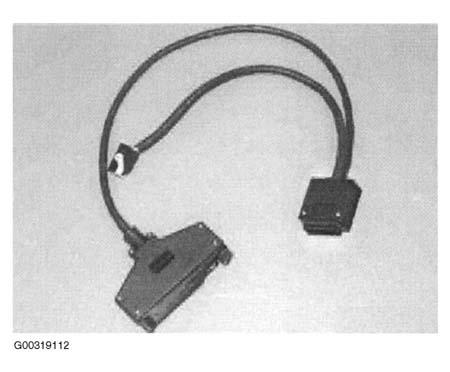

Fig 1: Adapter Cable LCM P/N 90 88 6 630 400

Used to locate faults in the Light Check Module in conjunction with the 88 Pin Breakout Box 88 88 6 614 410.

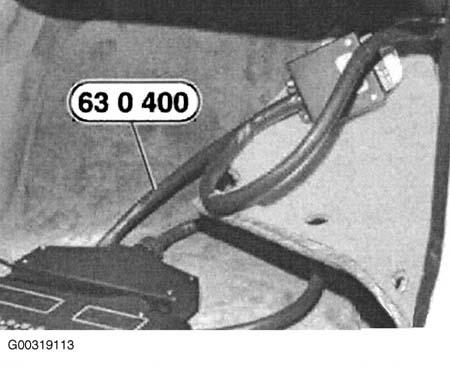

Fig 2: Adapter Cable LCM Connection
