61 13... Removing and installing/replacing OBD-II socket

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 315 .

Necessary preliminary tasks

Remove PEDAL ASSEMBLY TRIM .

Release screws (1).

Remove OBD-II socket (2) from dashboard carrier (3).

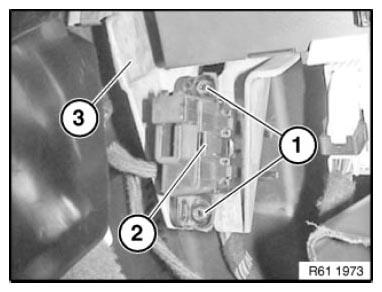

Fig 1: Identifying OBD-II Socket, Dashboard Carrier And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove OBD-II socket cover (2) from OBD-II socket (1).

Unlock slide plate (3) with a suitable tool in direction of arrow.

Insert special tool 61 0 315 into OBD-II socket (1) in the direction of the arrow and press out the associated flat spring contact (4). Press remaining flat spring contacts out of OBD-II socket (1) with special tool 61 0 315 .

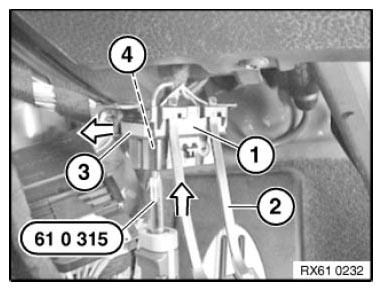

Fig 2: Inserting Special Tool (61 0 315) Into OBD-II Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pay attention to pin assignment of OBD-II socket (1).

Make sure flat spring contacts and slide plate (3) are correctly engaged and seated in OBD-II socket (1).
