Component Identification

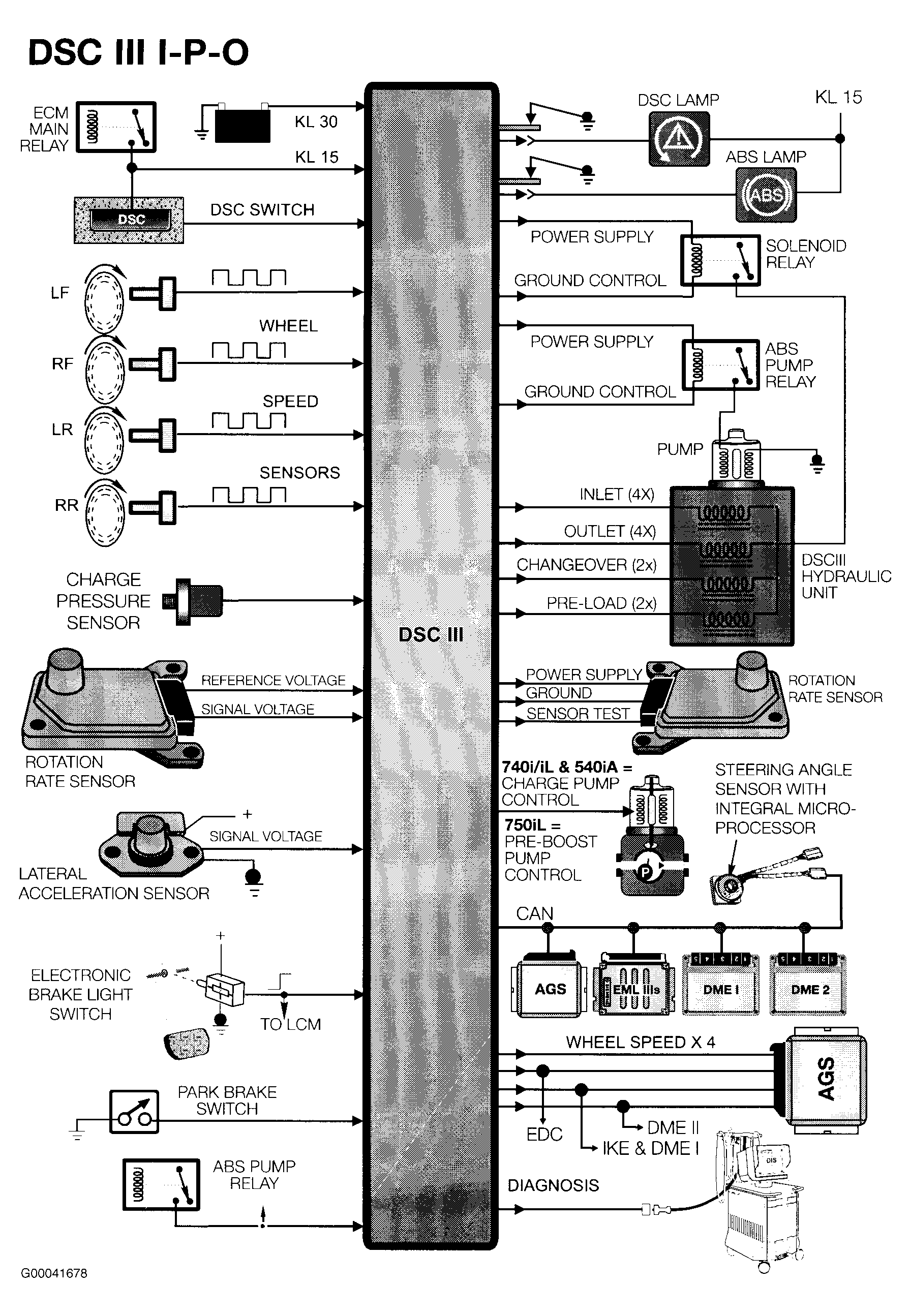

Fig 1: DSC III Inputs & Outputs

G00041678

Courtesy of BMW OF NORTH AMERICA, INC.
