Alignment Specifications

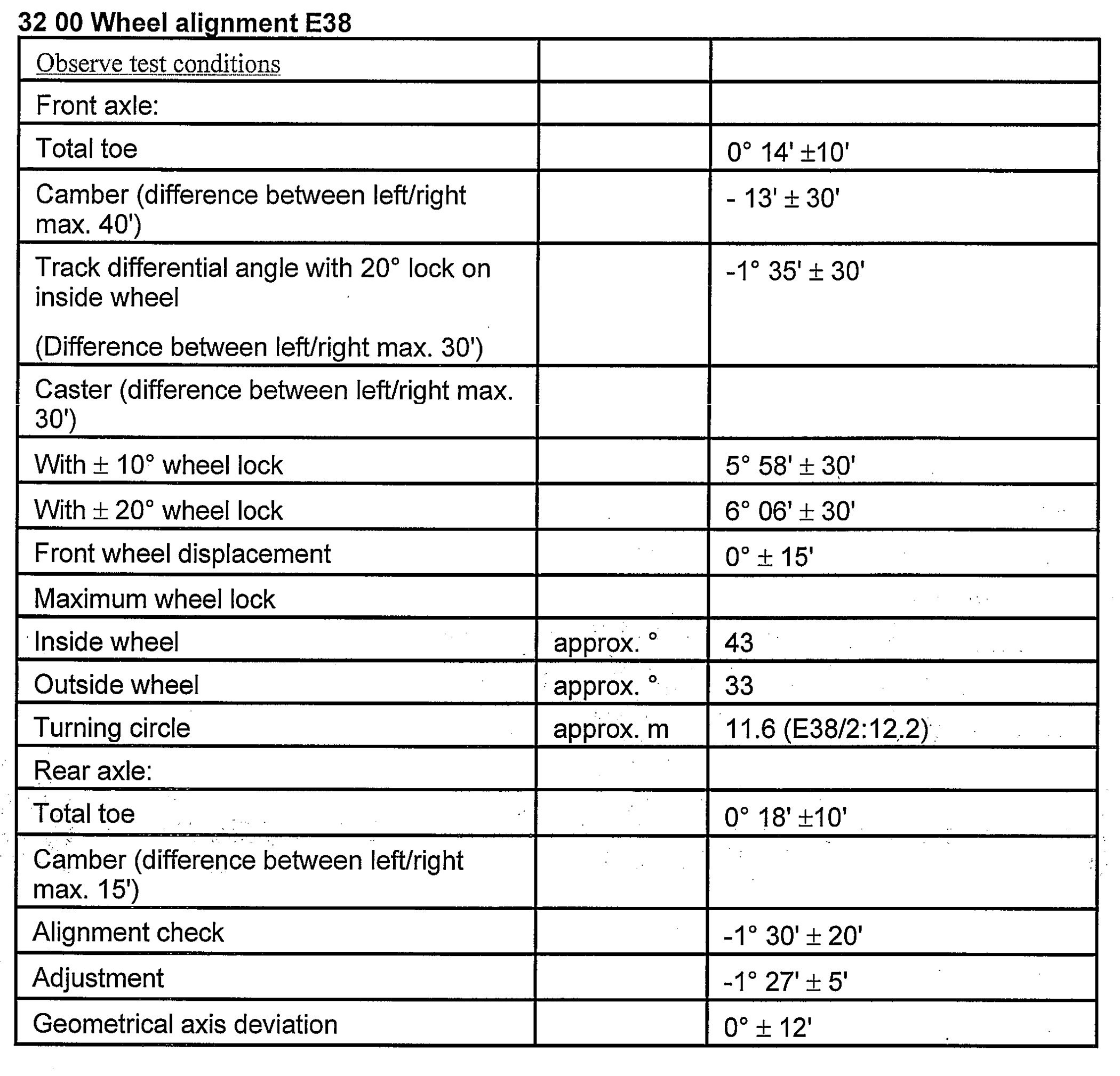

Fig 1: Wheel Alignment (E38)

Courtesy of BMW OF NORTH AMERICA, INC.

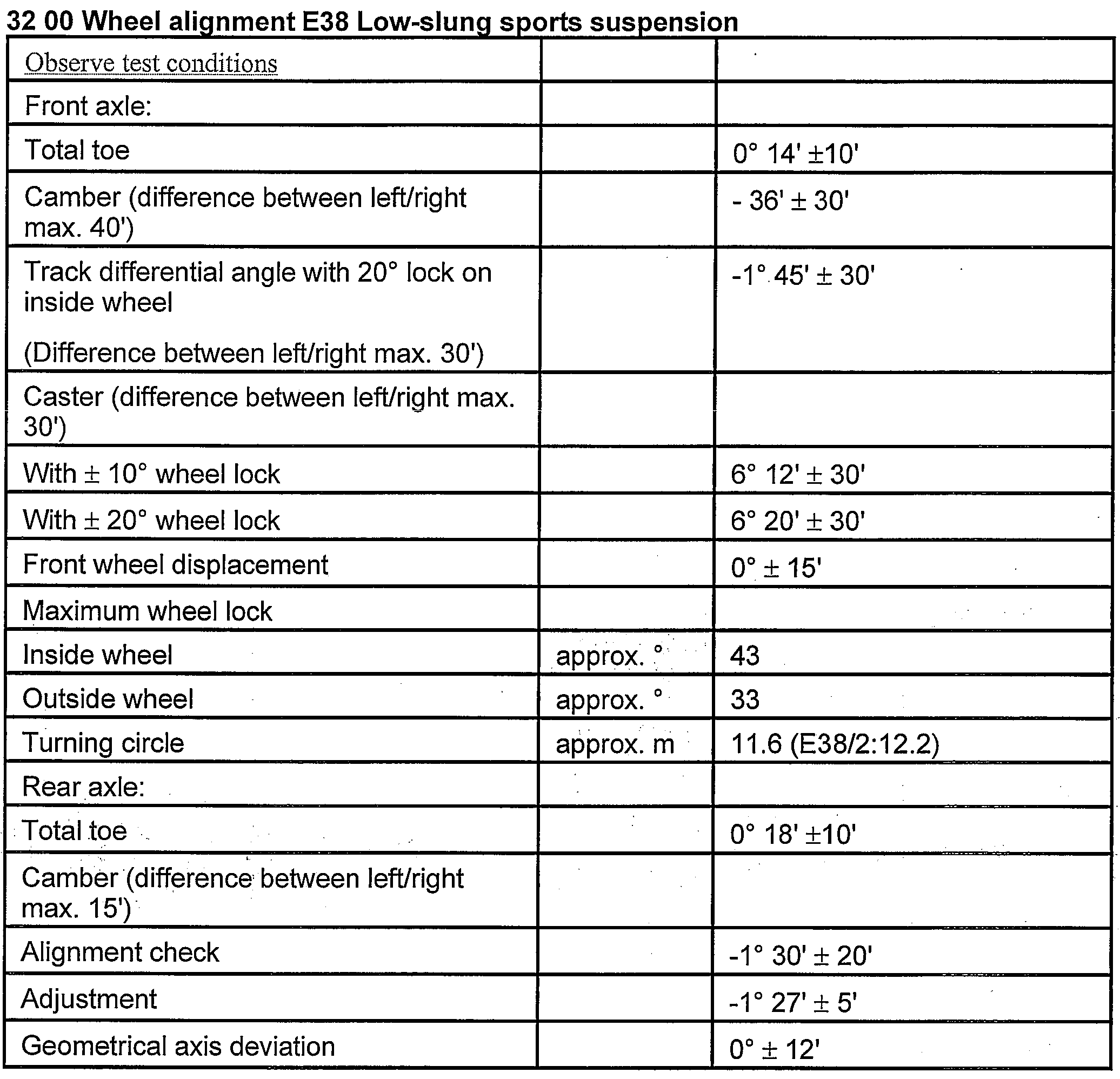

Fig 2: Wheel Alignment (E38) With Low-Slung Sport Suspension

Courtesy of BMW OF NORTH AMERICA, INC.

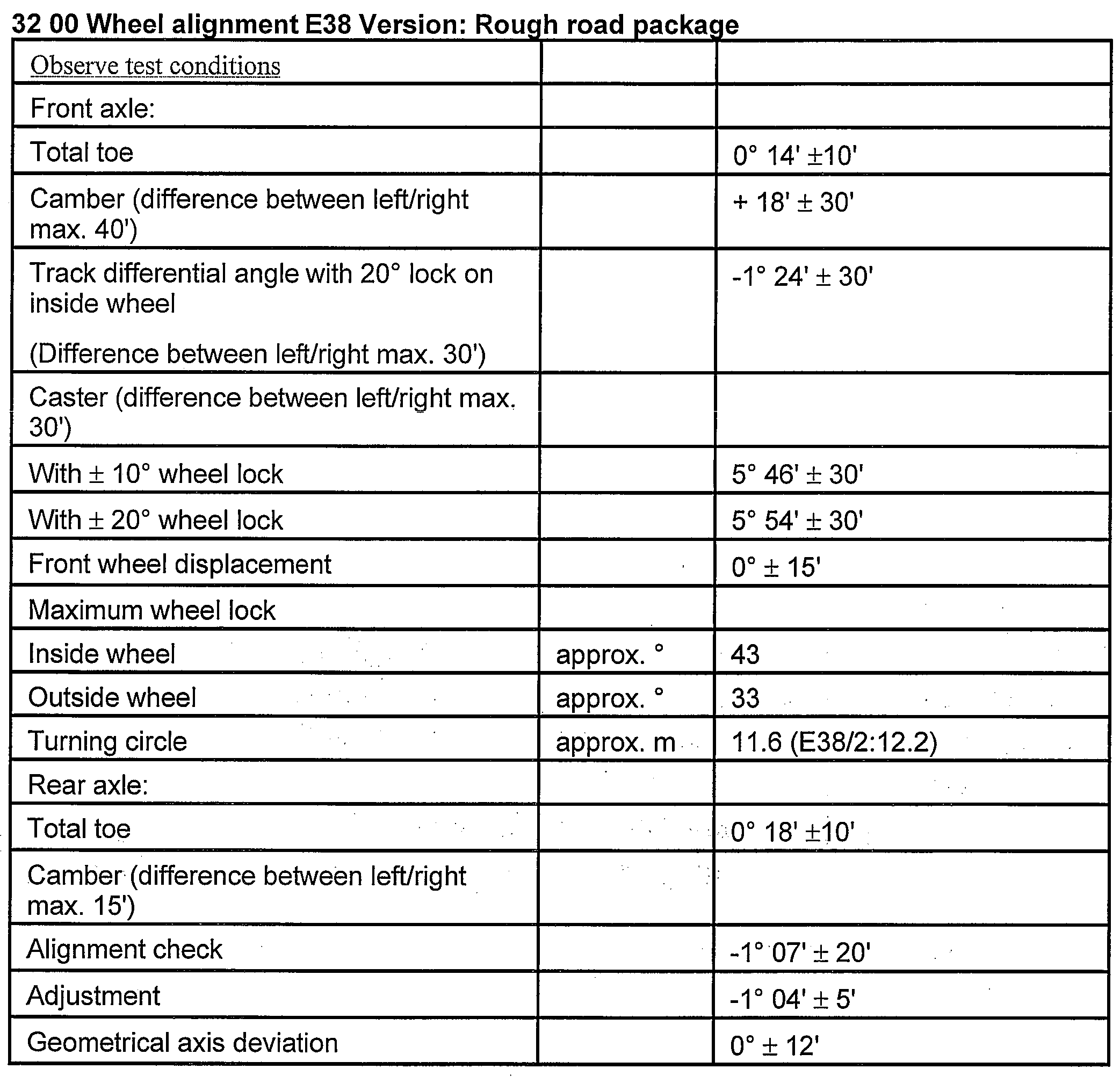

Fig 3: Wheel Alignment (E38) With Rough Road Package

Courtesy of BMW OF NORTH AMERICA, INC.
