61 13... Base of tab connector housings

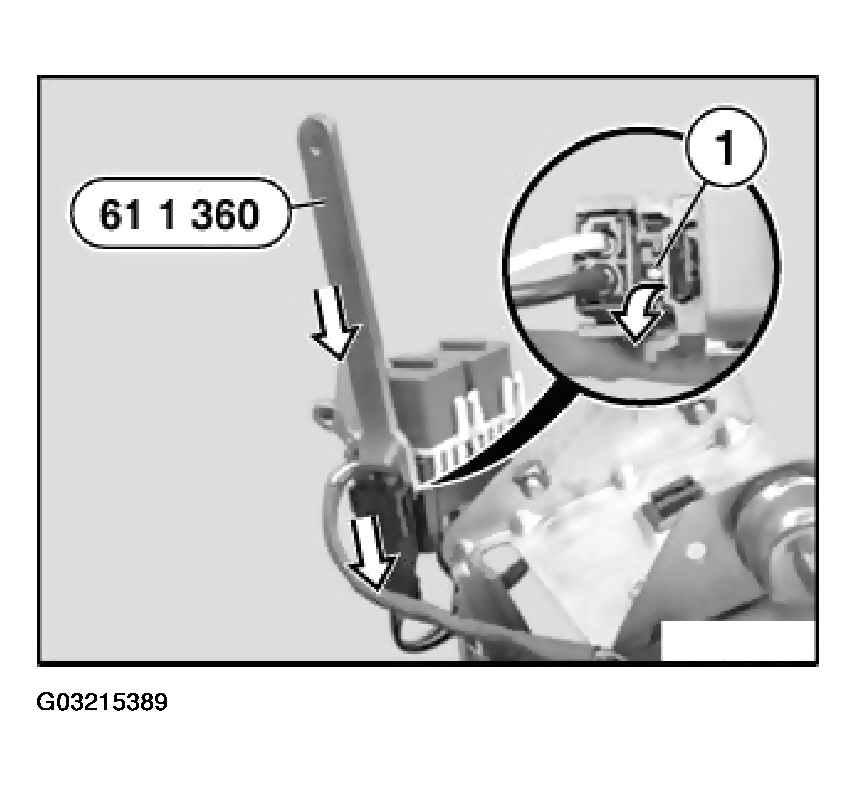

Unlock hook (1) with special tool 61 1 360 and slide plug housing downwards out of base.

Fig 1: Unlocking Hook With Special Tool
G03215389
