EML IIIs: Components

The main components of the EML IIIs system include:

• The EML IIIs control module - located in the E-box.

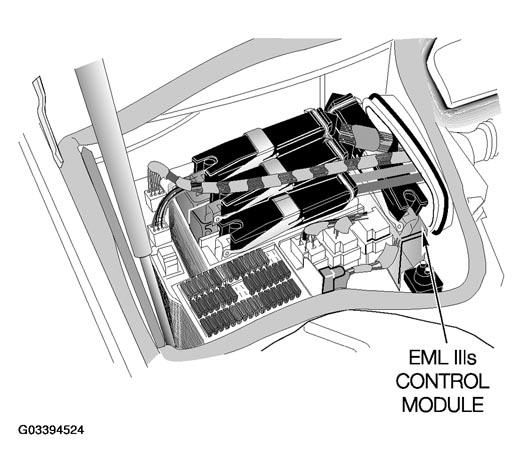

  Fig 1: Identifying EML IIIs Control Module


• Two throttle (DK) assemblies - mounted on each intake manifold.

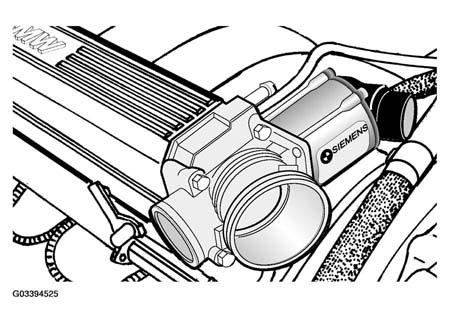

  Fig 2: Identifying Throttle (DK) Assemblies - Mounted On Each Intake Manifold


• One pedal position sensor (PWG) - connected to the accelerator pedal (with a separate kick-down switch).
• Electronic brake light switch.

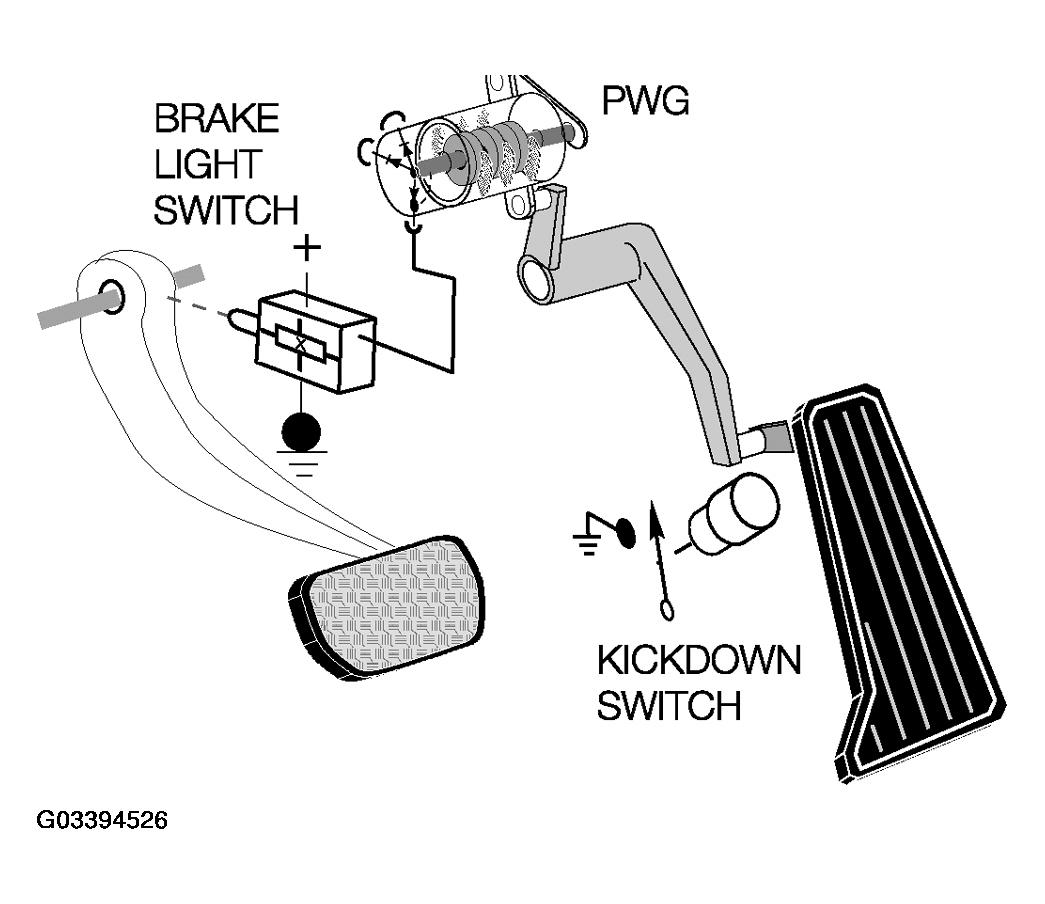

  Fig 3: Identifying Pedal Position Sensor (PWG)


• Cruise control main switch - mounted on the instrument panel. Provides a switched ground input to the EML control module (Early E38 only, incorporated in the steering wheel control switch on later models).

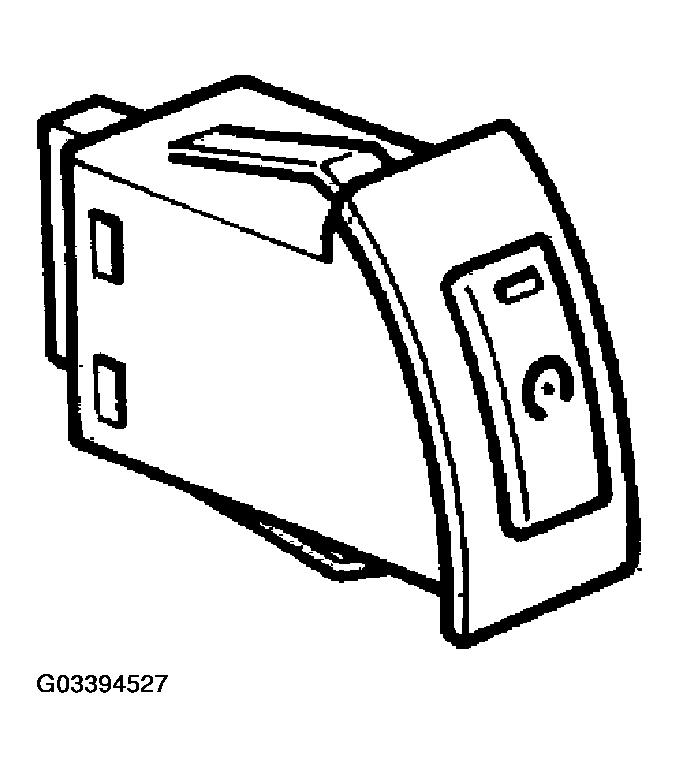

  Fig 4: Identifying Cruise Control Main Switch


• Multi-Function Steering Wheel - cruise control switch pad and the MFL control module.

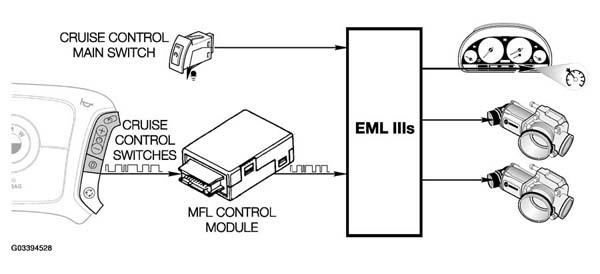

  Fig 5: Identifying Cruise Control Switch Pad And MFL Control Module


• Check control module - for activation of the fault warning display.

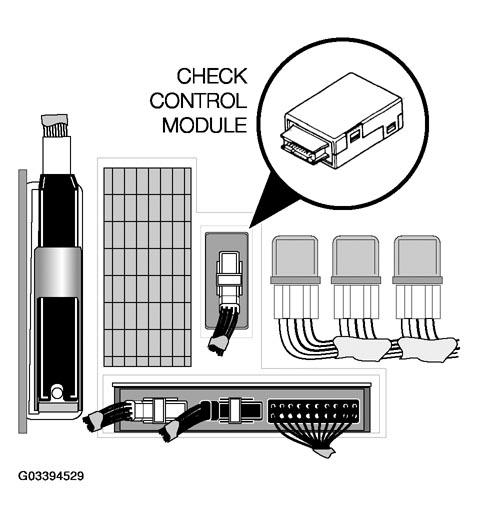

Fig 6: Checking Control Module
