EML IIIs CONTROL MODULE

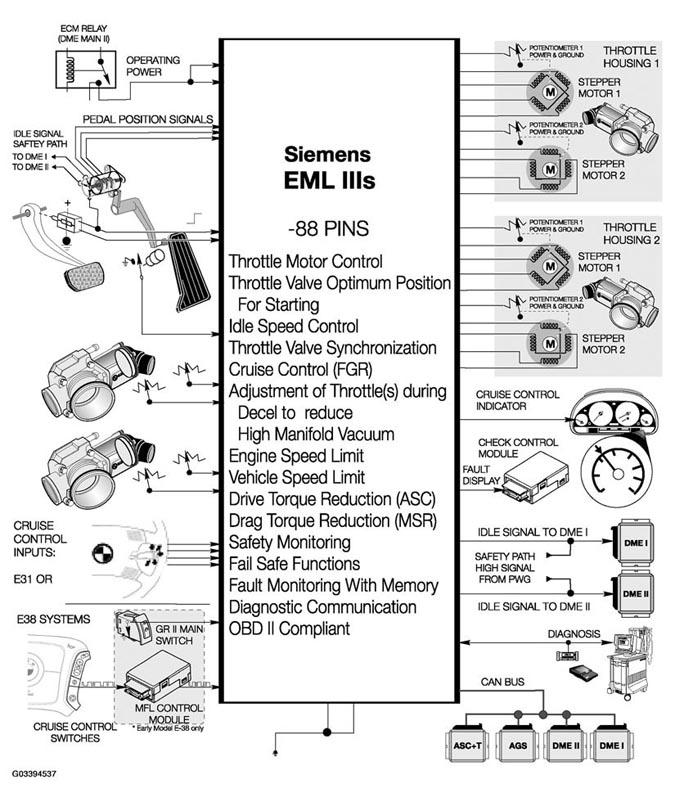

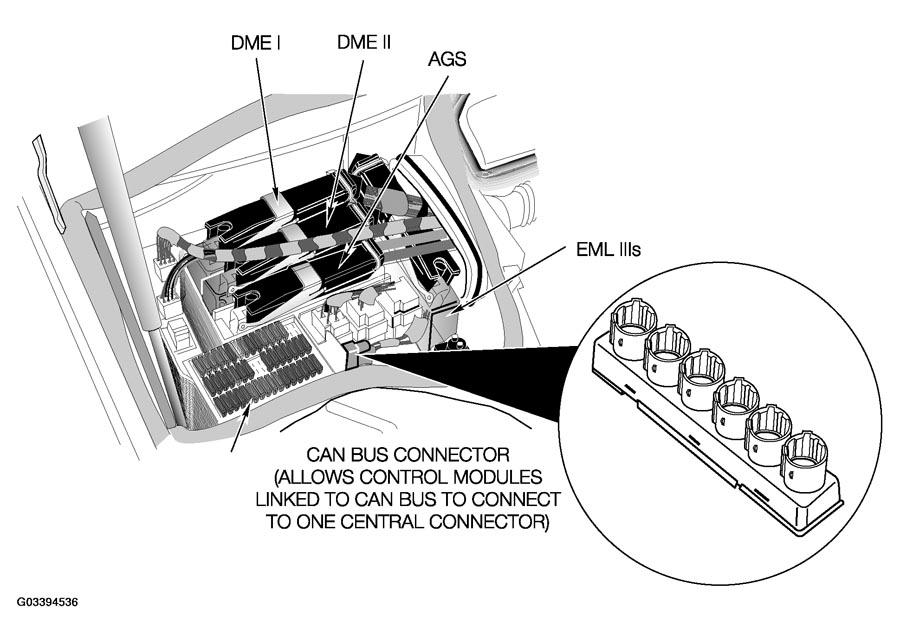

The EML IIIs control module is located in the E-Box. All control and safety monitoring functions of the EML are backed up by redundant processing. Each pair of the output control final stages of the DK motors is controlled by a separate processor. The EML control module communicates with the ECM, ASC+T and EGS control modules over the CAN line for the following inputs/outputs:
ECM Control Modules
- Engine coolant temperature
- Throttle position
- A/C status (ON/OFF)
- Load signal (ti) for each DME
- Engine speed (TD)
AGS Control Module
- Kickdown
- Transmission range/program
- Shift Characteristics
ASC+T Control Module
- Throttle valve angle
- Throttle valve increase
- Throttle valve decrease
- Vehicle speed
