Fuel Pump Relay Control

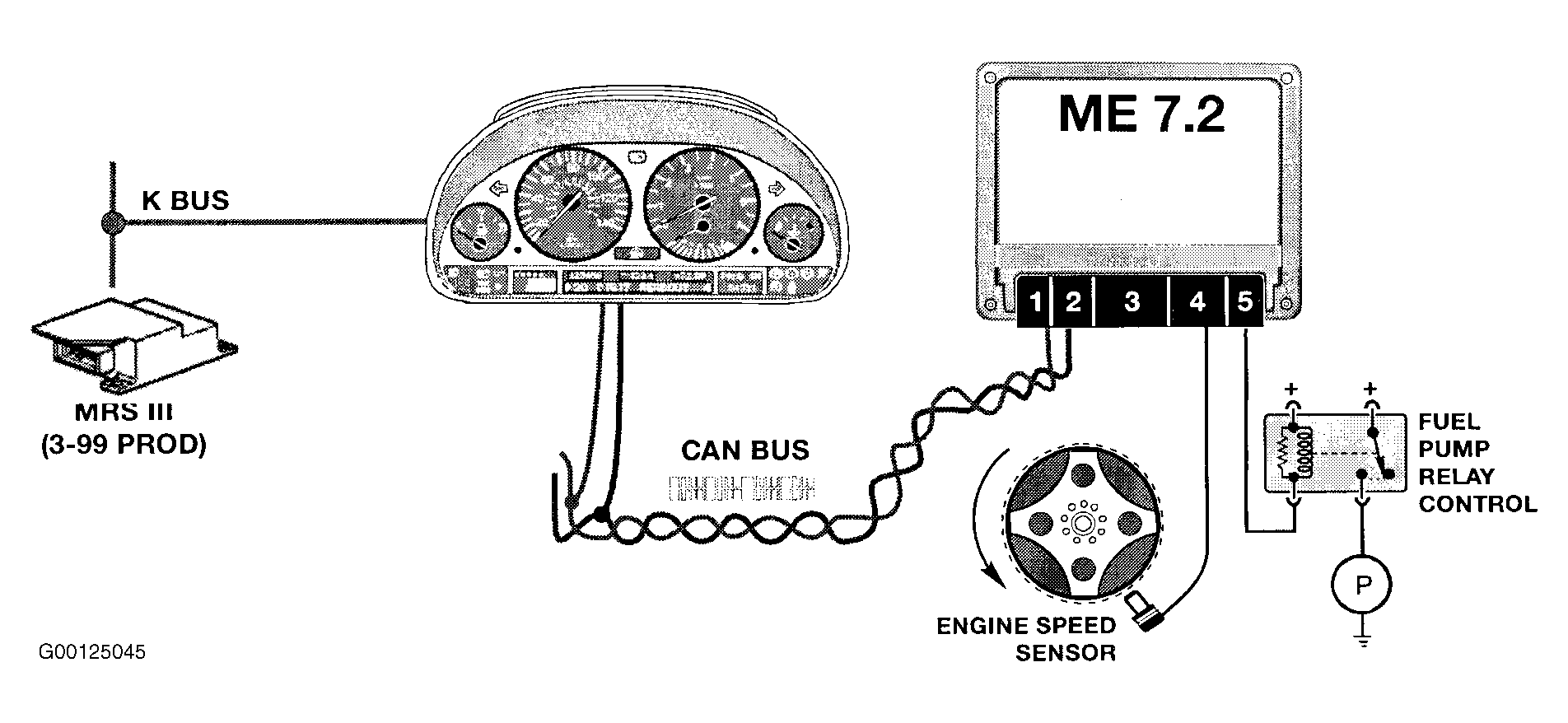

ME 7.2 controls the fuel pump relay as with previous systems with regard to engine speed input for continual activation of the relay. The ME 7.2 will switch off the fuel pump relay when an air bag is activated as an additional safety function. The signal is passed from the MRS III control module to the ME 7.2 over the CAN line. See Fig 1.
