Coolant Level Sensor Replacement Information (17 04 06)

Publication date: 2006-11-21
Reference number: 17 04 06

COOLANT LEVEL SENSOR REPLACEMENT INFORMATION

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B 17 04 06, Date of Issue: November 21, 2006

BMW:	All E39 (M5), E46, E52, E53, E60, E61, E63, E64, E65, E66, E70, E83, E85, E86, E90, E91, E92 models produced from 06/1998 equipped with a coolant level switch
GROUP:	Cooling Systems

SUBJECT

Coolant Level Sensor Replacement Information

SITUATION

The coolant sensor in these models incorporates a black plastic tube covering the switch components. This switch was designed with this plastic tube to achieve optimal functionality and it must NOT be removed during assembly.

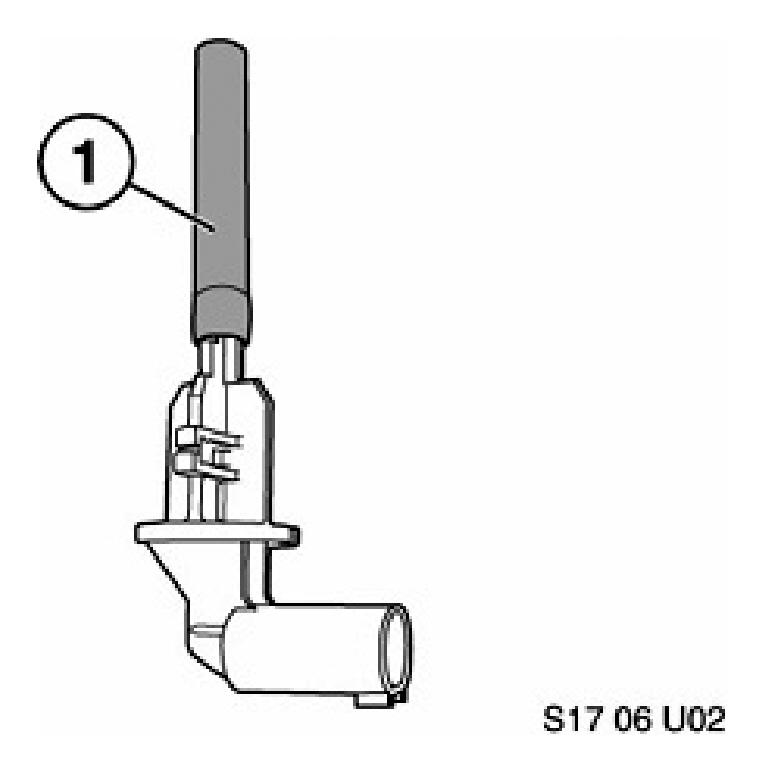

Fig 1: Coolant Level Sensor

Coolant Sensor - Part Number 17 13 7 524 812

Black plastic tube

WARRANTY

Information Only.
