Fuel Line Plugs (04 16 09)

Publication date: 2009-05-15
Reference number: 04 16 09

FUEL LINE PLUGS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B 04 16 09, Date of Issue: May 15, 2009

BMW:	All gas engine vehicles
GROUP:	Tools and Equipment

SUBJECT

Fuel Line Plugs

SITUATION

Distribution of the following tool will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC.

Fuel Line Plugs

Order P/N 83 30 0 496 565

Cartool P/N 135 160

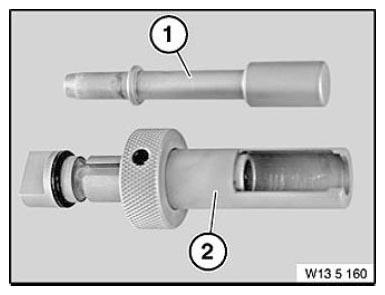

Fig 1: Fuel Line Plugs

135 161 plug for fuel line connector
135 162 plug for fuel line

The fuel line plugs are used to seal off the vehicle fuel lines during engine removal and replacement. This set of fuel line plugs is to be used on gasoline engines only. This set of fuel line plugs replaces fuel line plug set P/N 135 280 (83 30 0 491 313). Refer to Repair Manual section 13 53 332 for details.

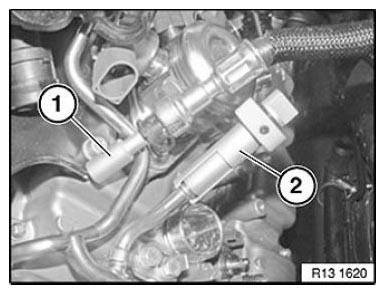

Fig 2: Vehicle Fuel Lines With Fuel Line Plugs Installed
