Test Cables (04 25 05)

Publication date: 2005-09-01
Reference number: 04 25 05

TEST CABLES

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B 04 25 05, Date of Issue: September 2005

BMW:	All
GROUP:	04 - Tools and Equipment

SUBJECT

Test Cables

SITUATION

Distribution of the following cables will be through the Automatic Tool Shipment Program. Additional cables may be purchased through your PDC.

AFS test cable

PN 90 88 6 612 470

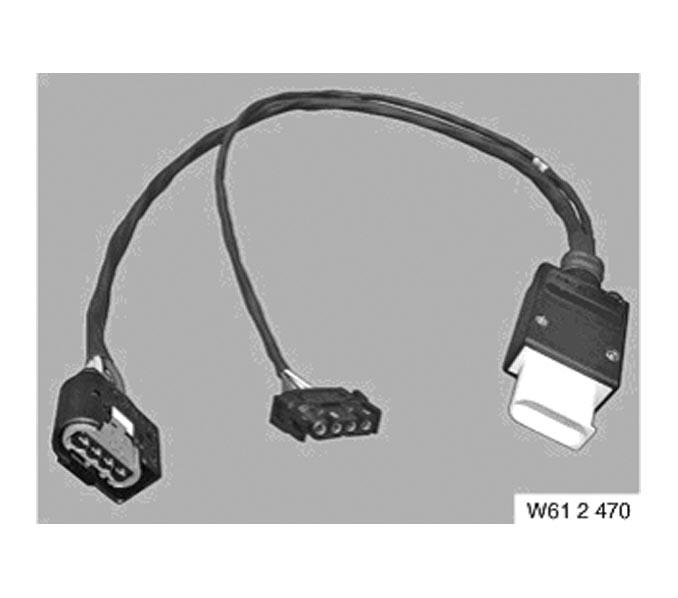

Fig 1: AFS Test Cable - PN 90 88 6 612 470

Used to troubleshoot the electric coolant (1) pumps.

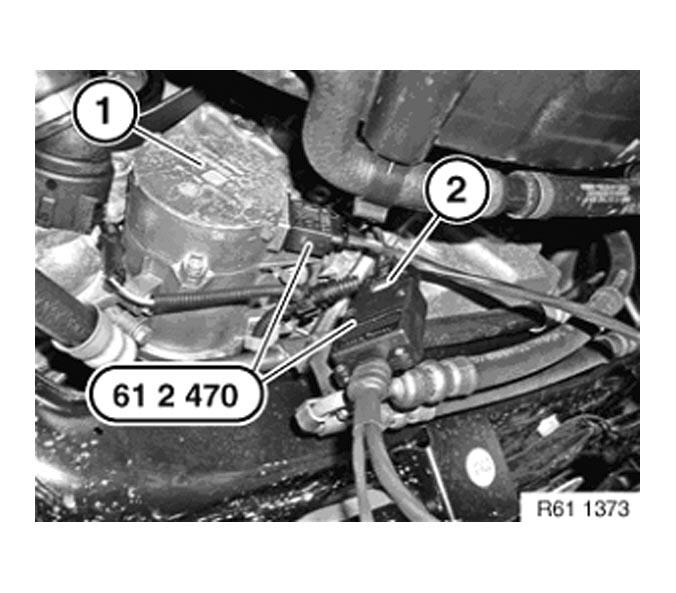

Fig 2: Troubleshooting Electric Coolant Pump

Used to troubleshoot active steering (AFS). The test cable is connected between the AFS (1) and the vehicle wiring harness (2).

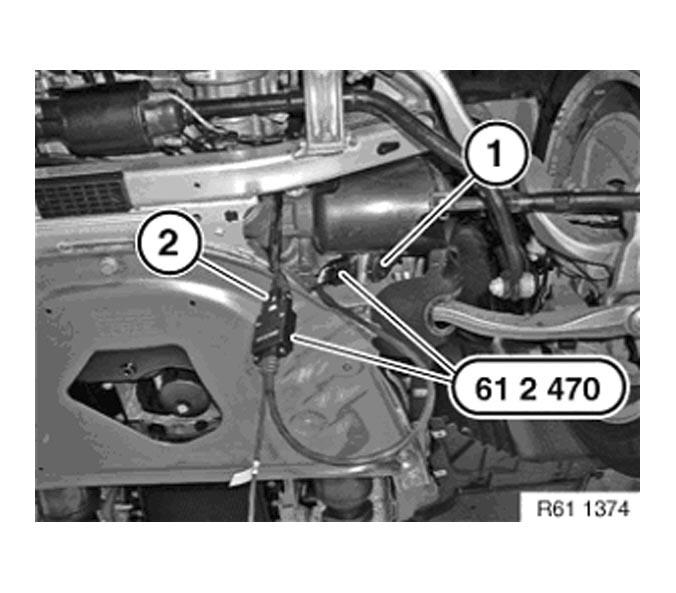

Fig 3: Troubleshooting Active Steering (AFS)

Seat test cable

PN 90 88 6 614 360

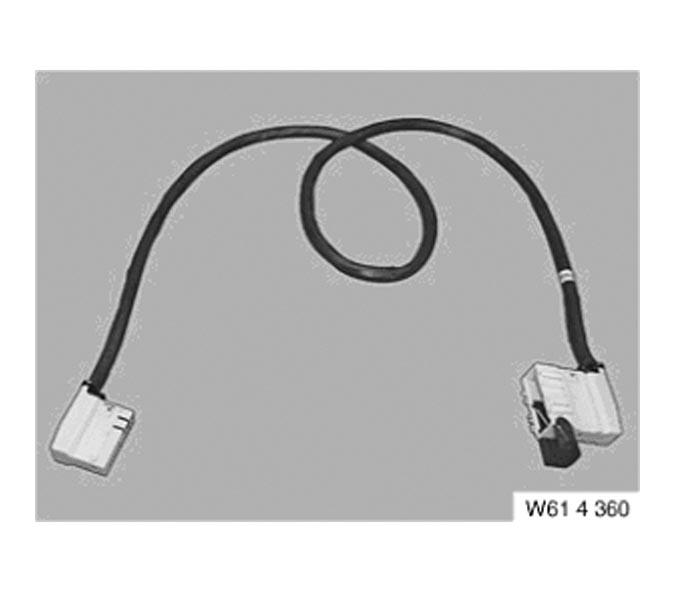

Fig 4: Seat Test Cable - PN 90 88 6 614 360

Used to test the seat function (out of vehicle) on E90 vehicles.

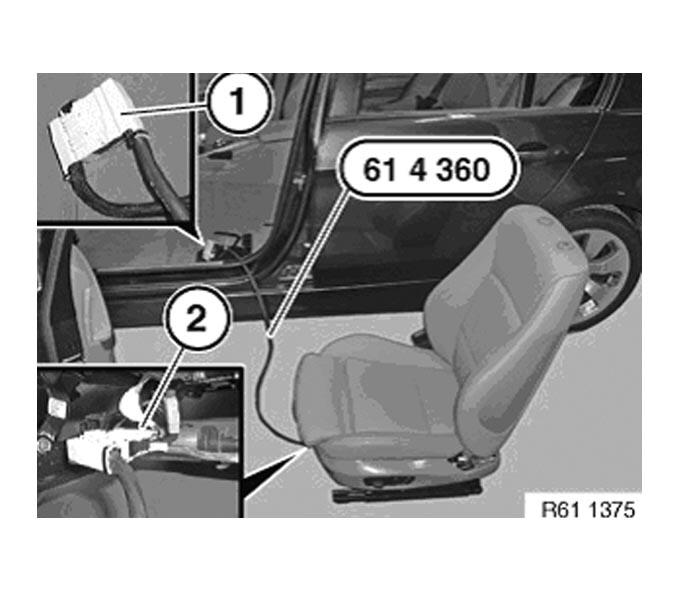

Fig 5: Testing Seat Function

Engine test cable

PN 90 88 6 614 370

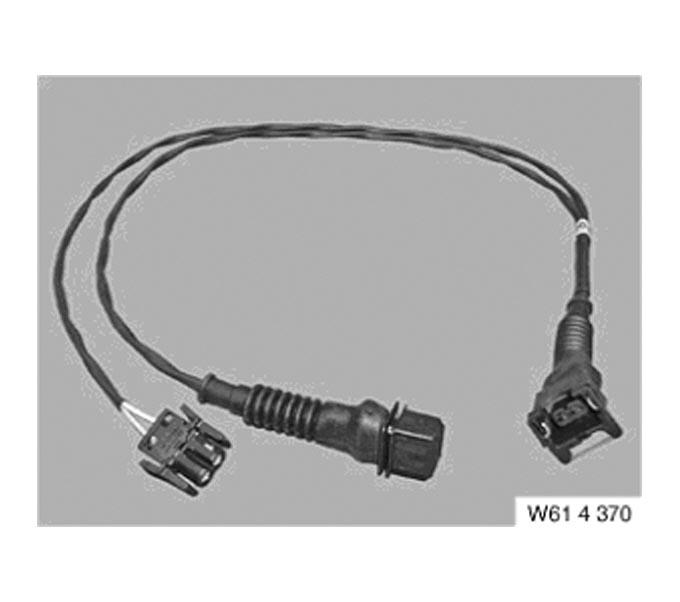

Fig 6: Engine Test Cable - PN 90 88 6 614 370

All engine-wiring harnesses are equipped with connectors from various suppliers (Kostal, Tyco or Bosch). These connectors are coded differently. This test harness is zero coded which allows the testing of sensors and actuators such as the coolant temp sensor (1).

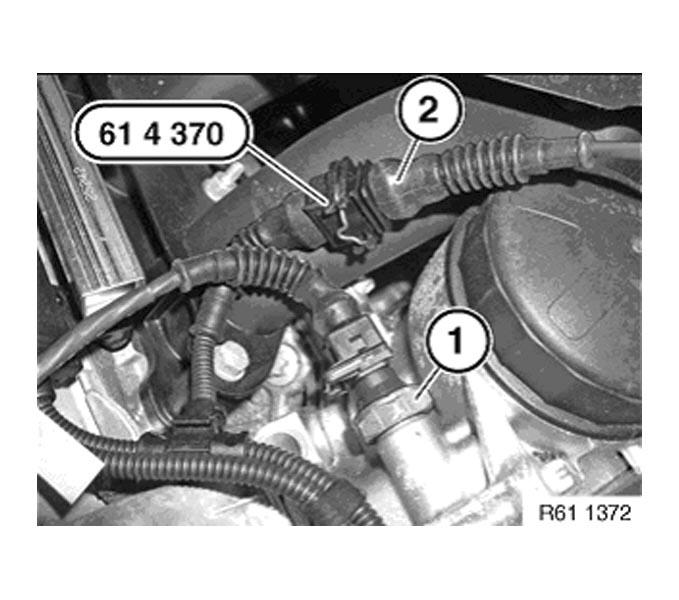

Fig 7: Testing Coolant Temp Sensor
