Transmission Control Module

The TCM receives inputs, processes information and actuates the output elements to provide optimal shift points. See Fig 1 . The TCM is programmed for maximum shift comfort and fuel economy. The TCM on most BMW vehicles is located in the E-Box next to the ECM (DME). There are several types of TCM housings:

• 35 Pin TCM (TCU) - used on the 4HP transmissions.
• 55 Pin TCM - used on the A4S310R (THM-R1).
• 88 Pin TCM - used on all others up to 1998.
• 134 Pin TCM - used on all BMW transmission from the 1999 model year. (Note- the 134 pin TCM was introduced on the 1998 Models equipped with the A5S440Z).

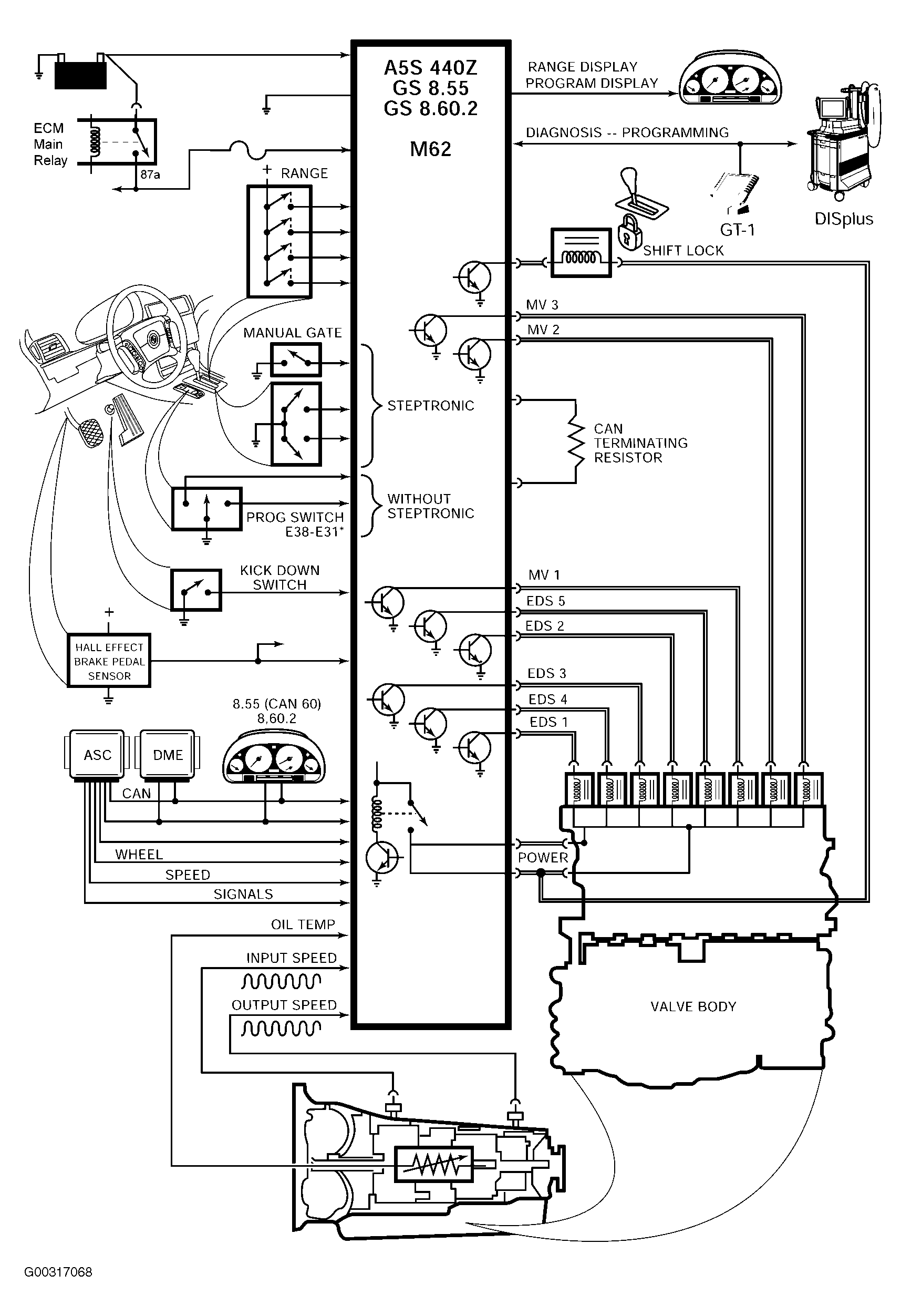

  Fig 1: Electrical System Components

  Courtesy of BMW OF NORTH AMERICA, INC.

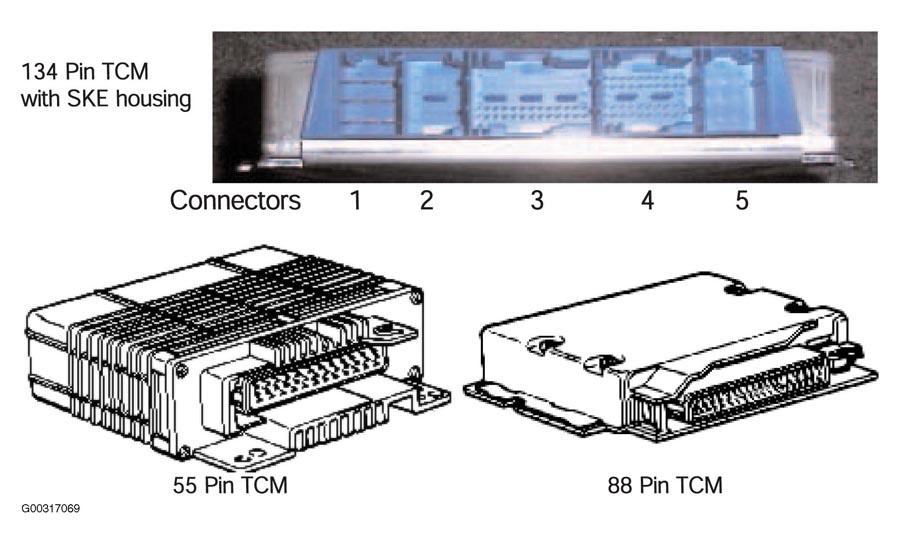

The 134 Pin TCM is also referred to as SKE (Standard Shell Construction). The SKE housing uses 5 separate connectors. On transmission applications only three connectors 1, 3 and 4) are used. Connectors 2 and 5 are blank and are NOT used. The connectors are blue in color to avoid confusion with the ECM (DME) connectors which are black. See Fig 2 .
