VANOS Solenoid Replacement

The solenoids are threaded into the oil distribution flanges through a small opening in the upper timing case covers.

Special Tool 11 6 420 is required.

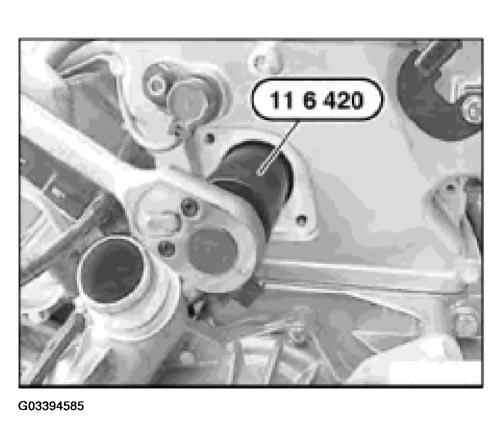

Fig 1: Replacing VANOS Solenoid

Courtesy of BMW OF NORTH AMERICA, INC.
