VANOS Transmission Retard Position Set Up Tools

Special Tool 11 6 440 is used to rotate the transmission to the full retard position when checking the piston position with an ohmmeter.

This tool engages the inner hub of the transmission provides an easy method of twisting it to the left for the ohmmeter test.

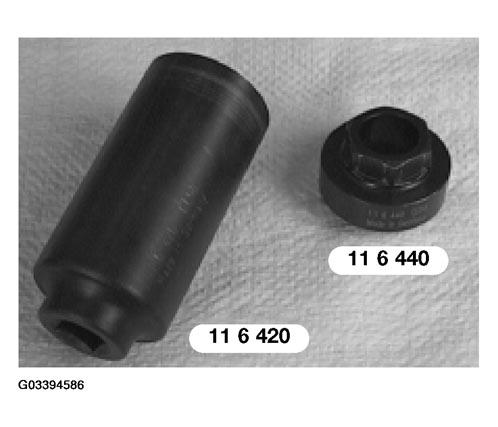

Fig 1: VANOS Transmission Retard Position Set Up Tools

Courtesy of BMW OF NORTH AMERICA, INC.

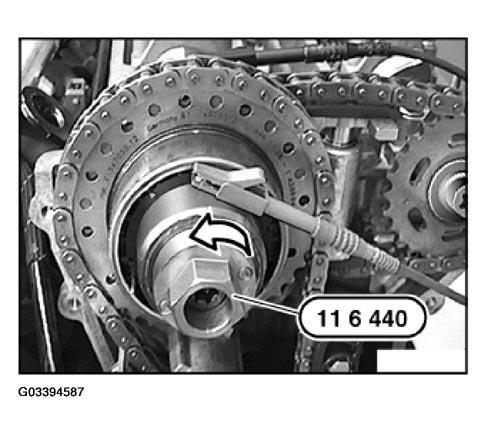

Fig 2: Tool Engages Inner Hub Of Transmission

Courtesy of BMW OF NORTH AMERICA, INC.
