Service Action 296 - Reprogramming The TCM/EGS (24 01 01)

SERVICE ACTION 296 - REPROGRAMMING THE TCM/EGS

SERVICE CAMPAIGN BULLETIN

SUBJECT

Reprogramming the TCM/EGS

MODEL

E36 Z3 roadster/coupe with M54 produce up to 11/00

E46 3 Series with M54 produced up to 11/00

E53, X5 3.0 vehicles produced up to 11/00

SITUATION

Due to a transmission control module (TCM / EGS) software error, a communication conflict may exist between the TCM and an "aftermarket" scan tool. This may prevent the TCM from displaying the control module's "calibration identification" on the "off-board" scan tool display.

AFFECTED VEHICLES

This service action involves E36 Z3, E46, and X5 3.0 vehicles with the M54B25 and M54B30 engines which were produced up to 11/2000.

In order to determine if a specific vehicle is affected by this service action, it will be necessary to utilize the "Service Menu" of the DCS (Dealer Communication System). Based on the response of the system, either proceed with the corrective action or take no further action.

The Chassis Number Ranges listed below are only for informational purposes and are not to be considered as the only deciding factor.

Model	Chassis Number Range
325Xi	EE75003 - EE75014
325iT	ET40000 - ET40015
325iA	FU75004 - FU75113
330iA	FJ63009 - FJ64066
330Xi	JS90008 - JS94071
330Ci	JU30003 - JU82703
330CiC	JW54002 - JW54007
330CiA	JY50001 - JY50008
Z3 3.0 roadster	LL47759 - LL47807
Z3 2.5 roadster	LM00594 - LM00777
Z3 3.0 coupe	LM13130 - LM13138
X5 3.0	LM60991
X5 3.0	LM73271 - LM74334

CAUSE

TCM/EGS program error

CORRECTION

Reprogram the TCM/EGS with CD25 or higher.

PROCEDURE

1. Using CD25  or higher, reprogram the TCM.
2. Using the DIS/MoDiC, select:
   • 4 Programming: "Programming Drive P25.0"
   • 5 "EGS Programming"
   • 1 "Exchange control unit"
   • 1 "Determine basic control unit"
   • "Is faulty control unit still installed in car" select "YES"
   • "Turn on ignition - start automatic determination" select "YES"
   • "Automatic determination active - please wait"
   • Follow the directions to complete the programming and clearing of the adaptations.
3. For reference only, the following numbers will be installed after programming with CD25

Vehicle	Basic Control Unit(1)	Programmed Control Unit(1)
325iA 325CiA 325CicA	7 508 145 7 514 301	7 514 265 7 514 303
325XiA 325XiTA	7 508 145	7 513 814 7 513 810
330XiA	7 508 145	7 513 386
330iA 330CiA 330CicA	7 512 045 7 514 265	7 512 057 7 514 303
Z3 roadster 2.5 Z3 roadster/coupe 3.0	7 508 145 1 423 955	7 513 392 7 513 816 7 506 685
(1) Basic and Programmed control unit #s are subject to change with future DIS software releases.

LABEL INSTRUCTIONS

This service action has been assigned code number 296  . After the vehicle has been checked, and corrected if necessary, obtain a label (SD92-155) and:

1. emboss your BMW dealer warranty number in the middle of the label (1);
2. punch out code number 296 printed on the label and,
3. affix the label to the B pillar as shown.

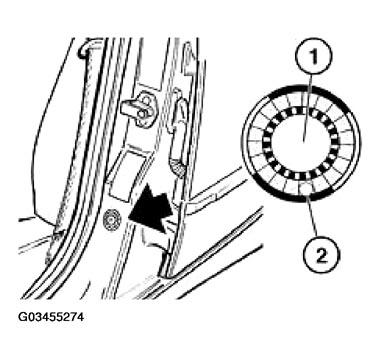

   Fig 1: Service Action Label



If the vehicle already has a label from a previous Service Action/Recall Campaign, affix the new label next to the old one. Do not affix one label on top of another one because a number from an underlying label could appear in the punched-out hole of the new label.

WARRANTY INFORMATION

Reimbursement for this service action will be provided through campaign entry without regard to vehicle age or mileage.

Defect Code:  00 24 15 01 00
