Mechatronics Module: Construction

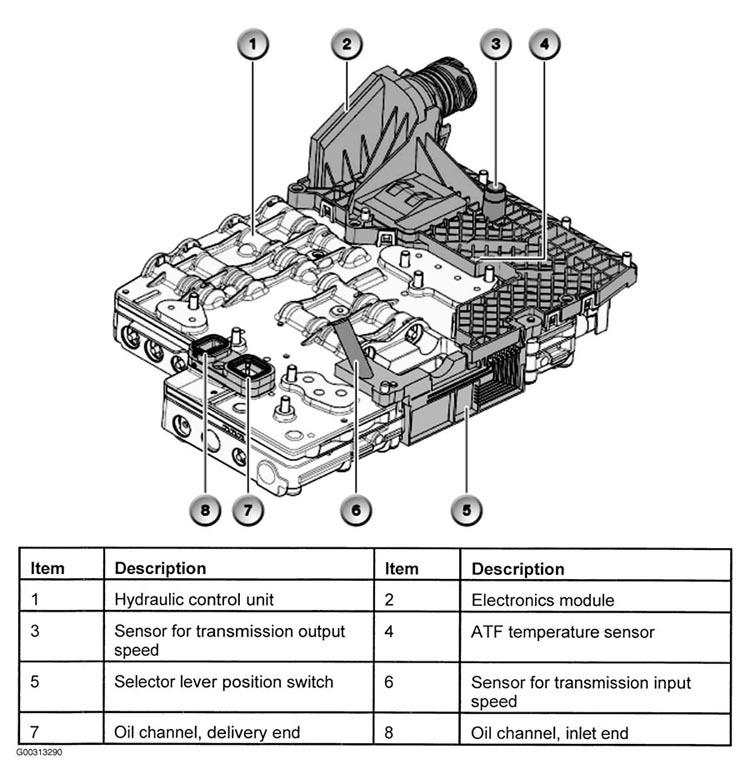

Fig 1: Top View Of Mechatronics Module
G00313290Courtesy of BMW OF NORTH AMERICA, INC.

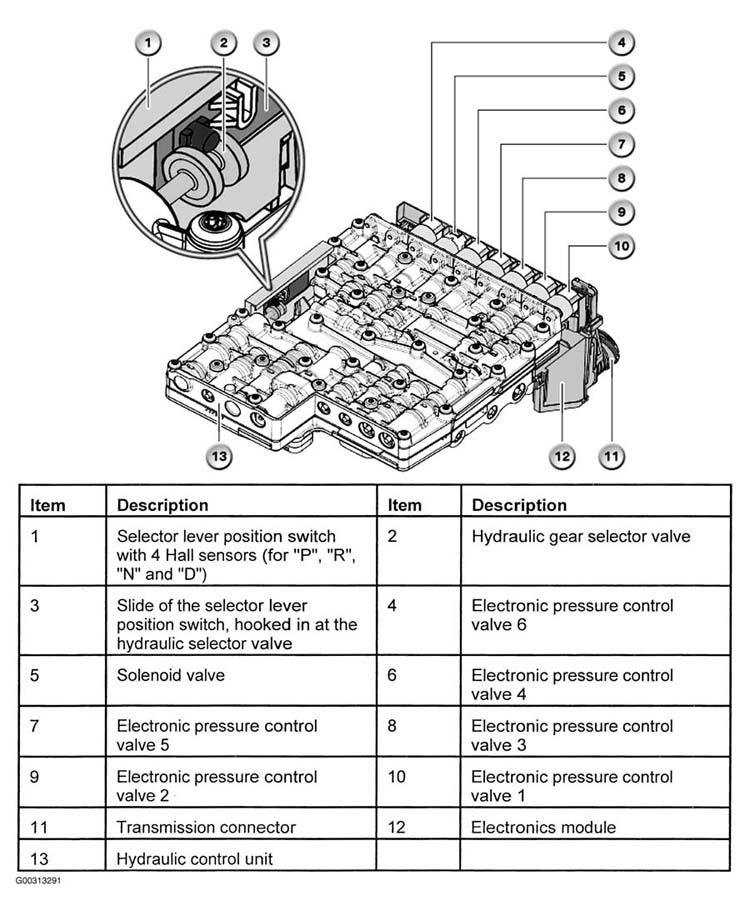

Fig 2: Bottom View Of Mechatronics Module
G00313291Courtesy of BMW OF NORTH AMERICA, INC.

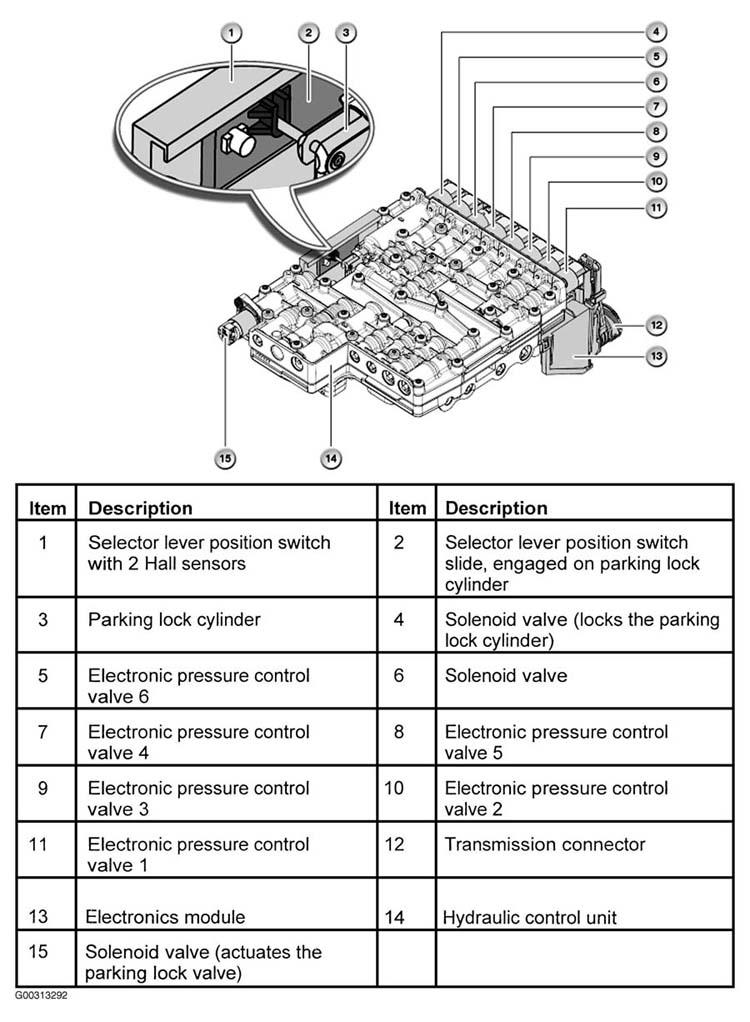

Fig 3: Underside View Of Mechatronics Module
G00313292Courtesy of BMW OF NORTH AMERICA, INC.

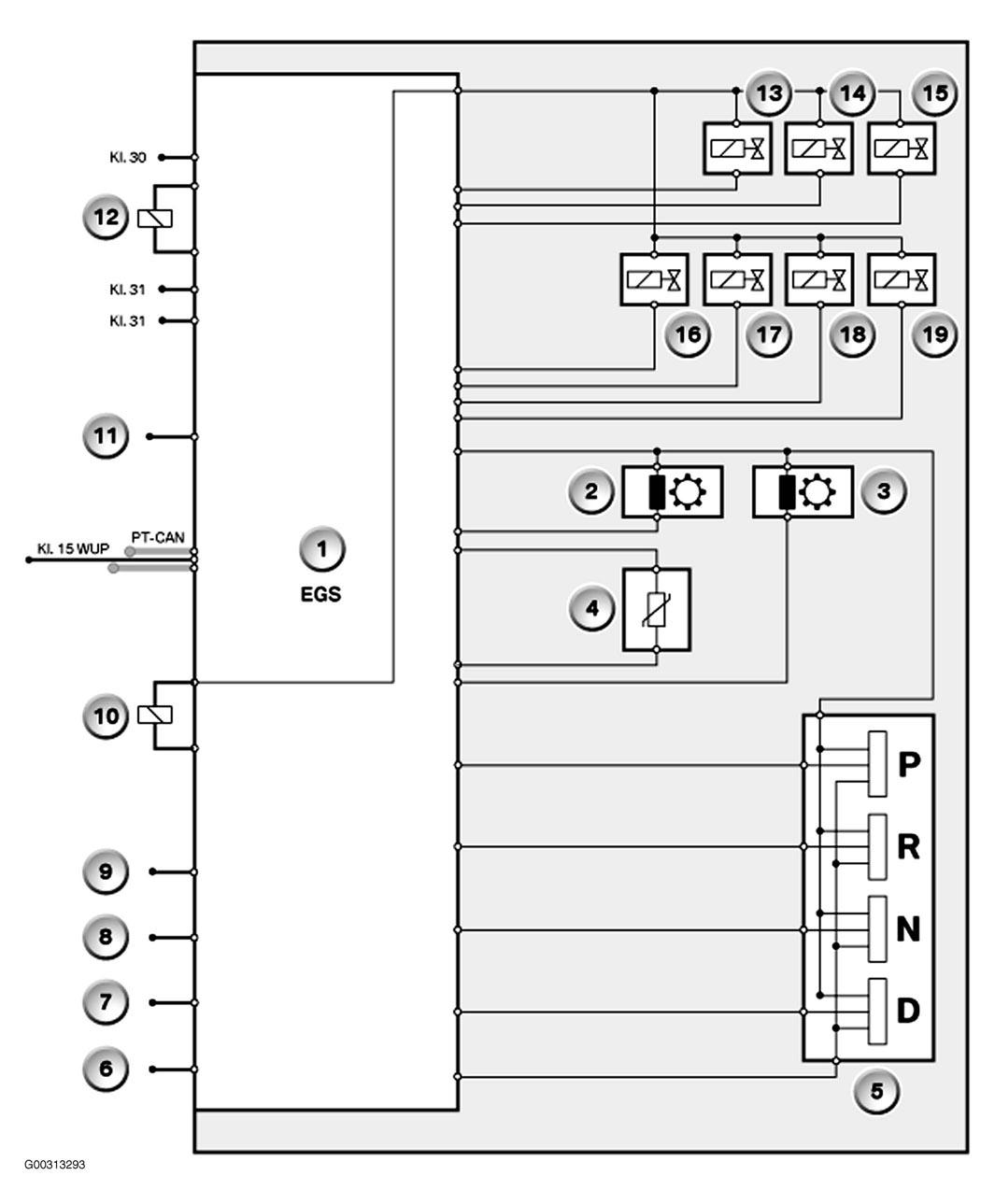

Fig 4: Block Diagram Of Mechatronics Module (E53, E60, E61, E63, E64, E83, E87, E90, E91)
G00313293Courtesy of BMW OF NORTH AMERICA, INC.

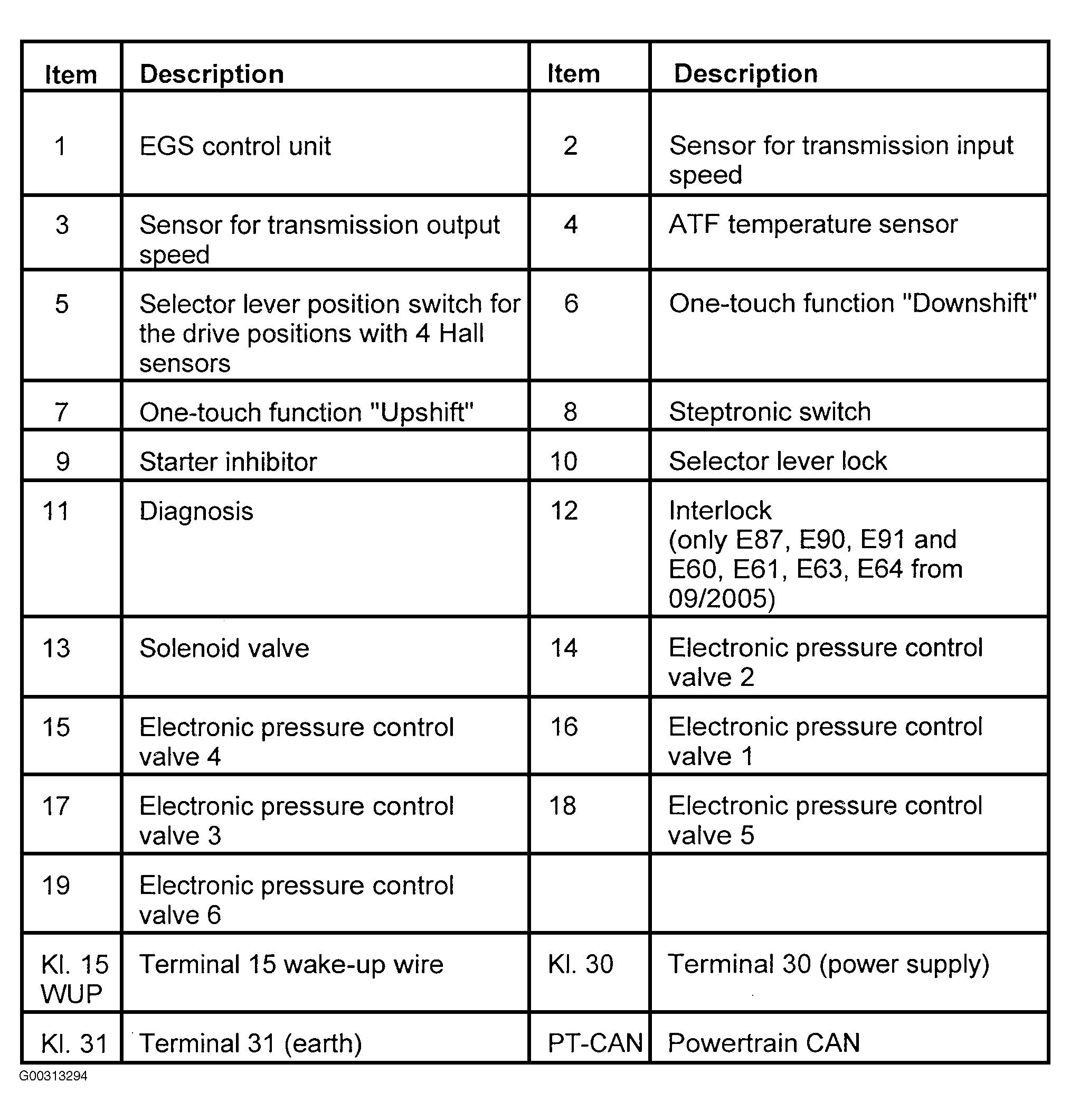

Fig 5: Legend For Mechatronics Module Block Diagram (E53, E60, E61, E63, E64, E83, E87, E90, E91)
G00313294Courtesy of BMW OF NORTH AMERICA, INC.

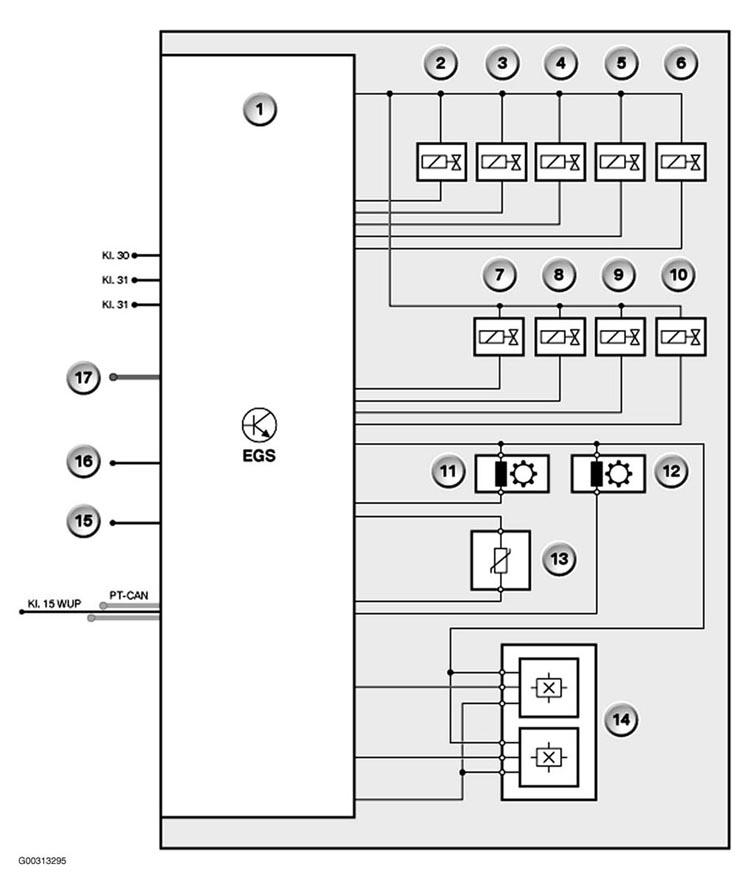

Fig 6: Block Diagram Of Mechatronics Module (E65, E66)
G00313295Courtesy of BMW OF NORTH AMERICA, INC.

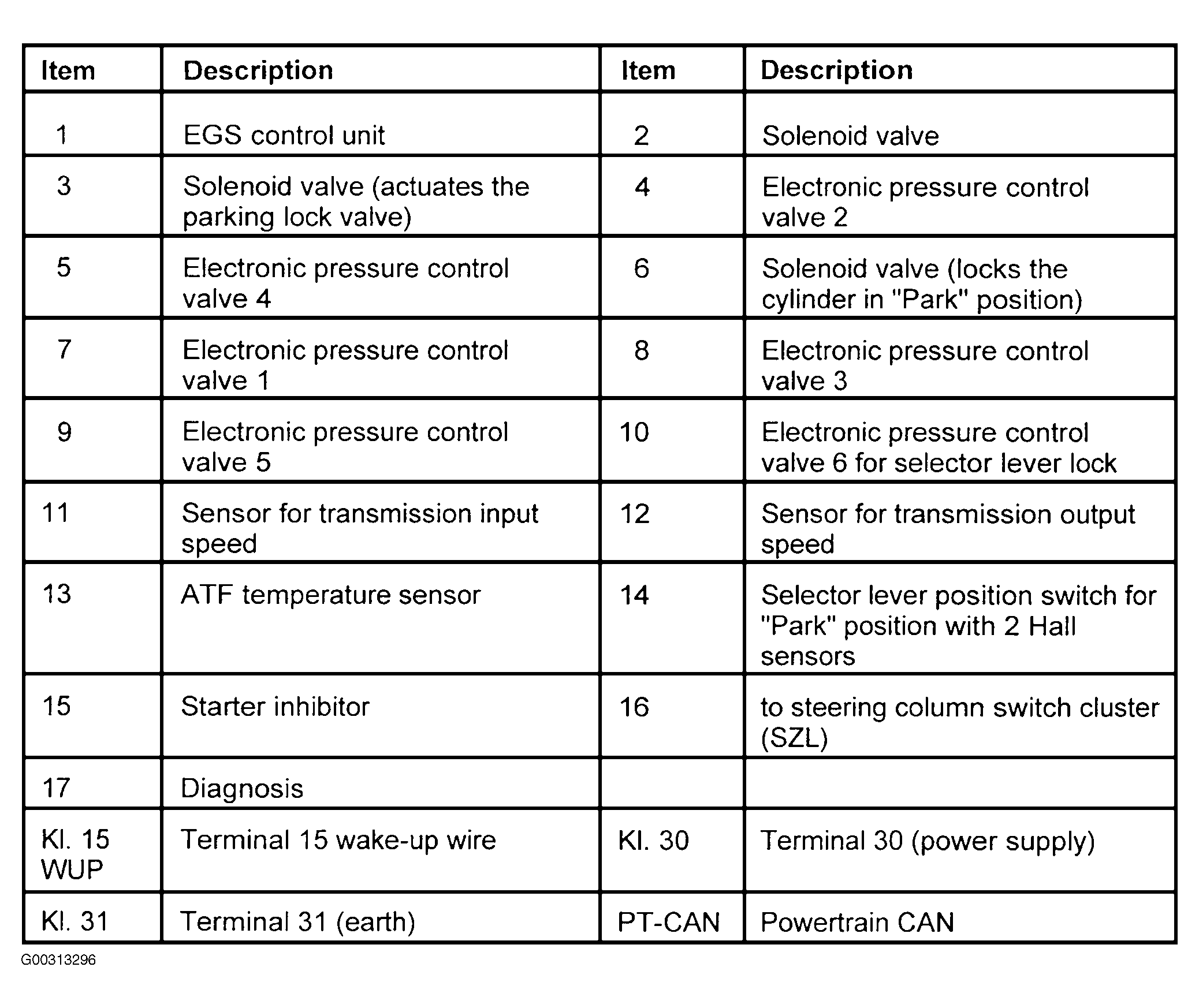

Fig 7: Legend For Mechatronics Module Block Diagram (E65, E66)
G00313296Courtesy of BMW OF NORTH AMERICA, INC.
