Hot Film Air Mass Sensor

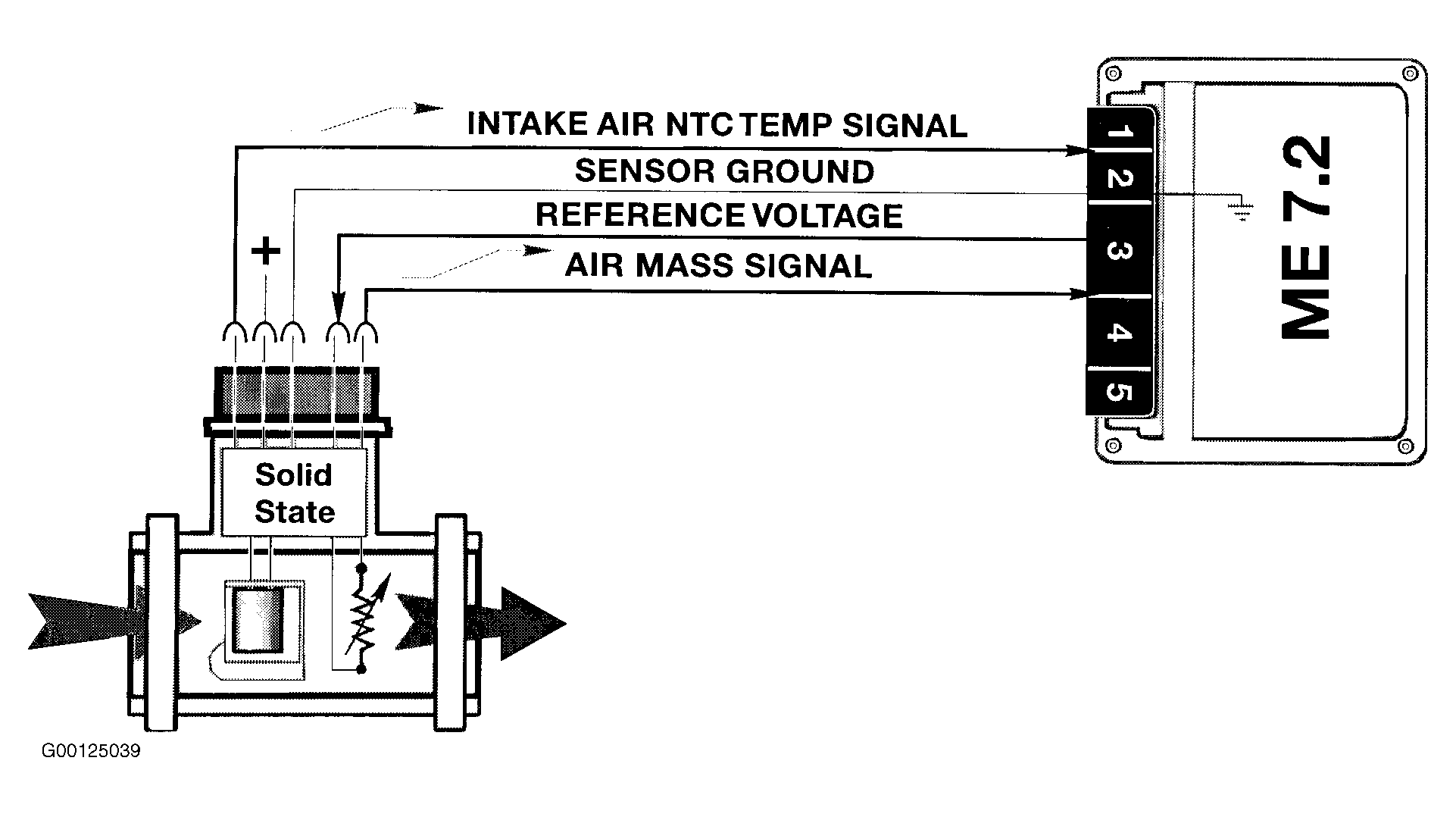

The M62 TU is equipped with a new Hot Film Air Mass Sensor identified as HFM 5. It is a combined air mass/intake air temperature sensor. The separate intake air temperature sensor is no longer used on the M62 TU. The HFM 5 is provided with operating power from the PCM main relay. Based on calculated intake air mass, the HFM 5 generates a varying voltage between 0.5 and 4.5 volts as an input signal to the ME 7.2. An additional improvement of the HFM 5 is that the hot film element is not openly suspended in the center bore of the sensor as with previous HFMs. It is shrouded by a round fronted plastic labyrinth which isolates it from intake air charge pulsations. This feature allows the HFM to monitor and calculate the intake air volume with more accuracy. This feature adds further correction for calculating fuel injection ON time which reduces emissions further. See Fig 1.
