Accelerator Pedal Sensor: Overview

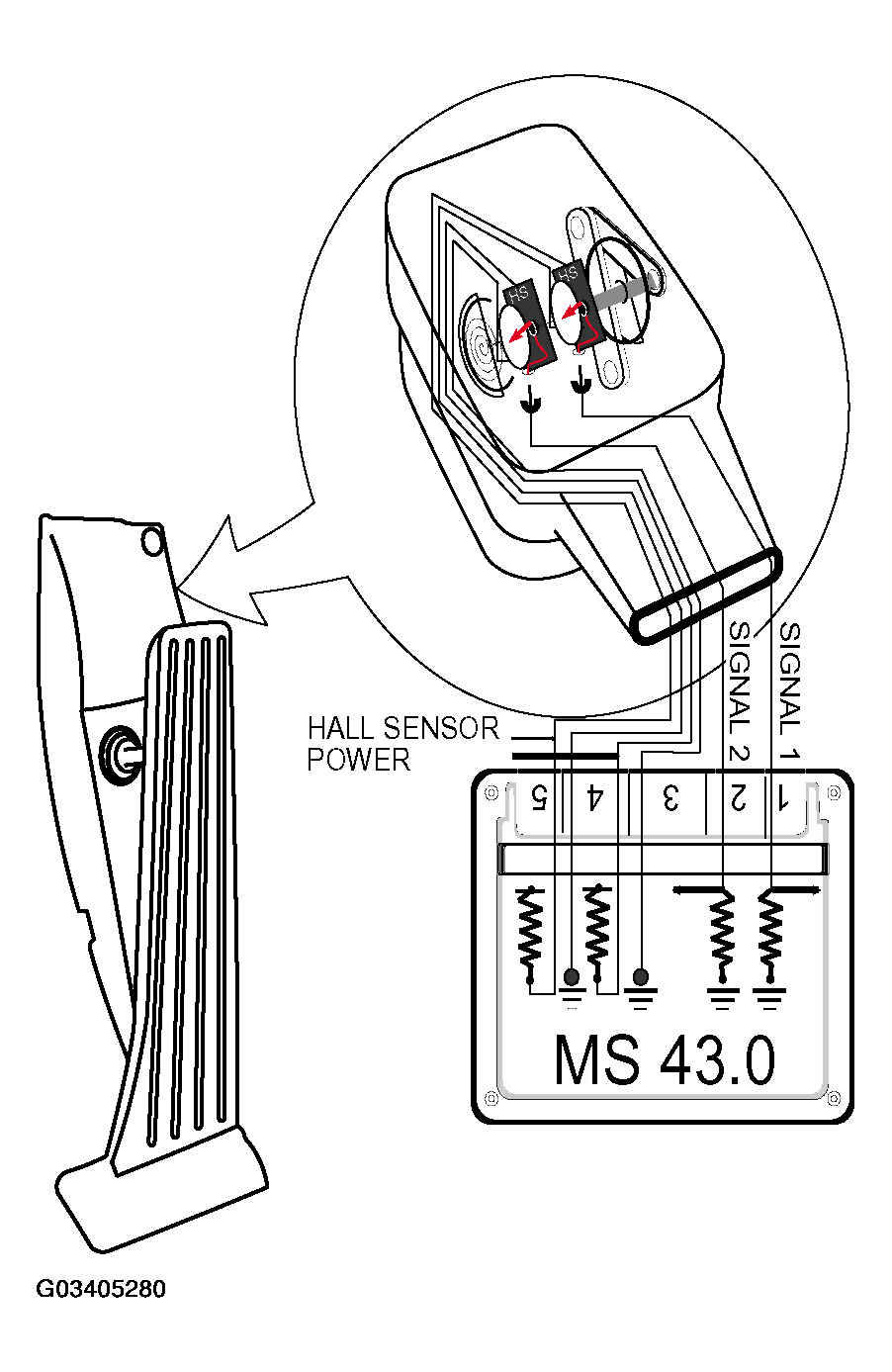

The accelerator pedal sensor is similar to the PWG used on the ME 7.2 system. It is integrated into the accelerator pedal housing. Two hall sensors are used to provide the driver's input request for power.
The hall sensors receive power (5 volts) and ground from the MS 43 control module and produce linear voltage signals as the pedal is pressed from LL to VL.
PWG SENSOR 1 = 0.5 to 4.5 V
PWG SENSOR 2 = 0.5 to 2.0 V
The MS 43 control module uses the signal from sensor 1 as the driver's request and the signal from sensor 2 as plausibility checking.
