M54 Engine: Notes

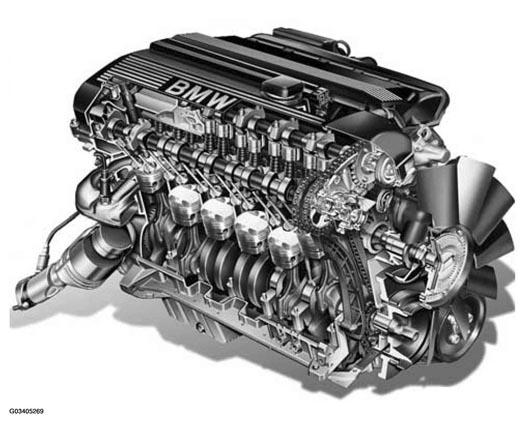

Fig 1: Identifying M54 Engine
G03405269
M54 ENGINE

  M54B30  M54B25
HORSE POWER  225@5900RPM  184@6000RPM
TORQUE  293Nm@3500RPM  240Nm@3500RPM
BORE  84mm  84mm
STROKE  89.6mm  75mm
COMPRESSION  10.2:1  10.5:1
