Workshop Hints: Coding

Coding must be performed after replacement of the DSC III control module or the steering angle sensor. ZCS coding is found in the Coding and Programming selection from the start screen or when pressing the Change button. Follow on-screen instructions for initialization of components after completing the coding process.

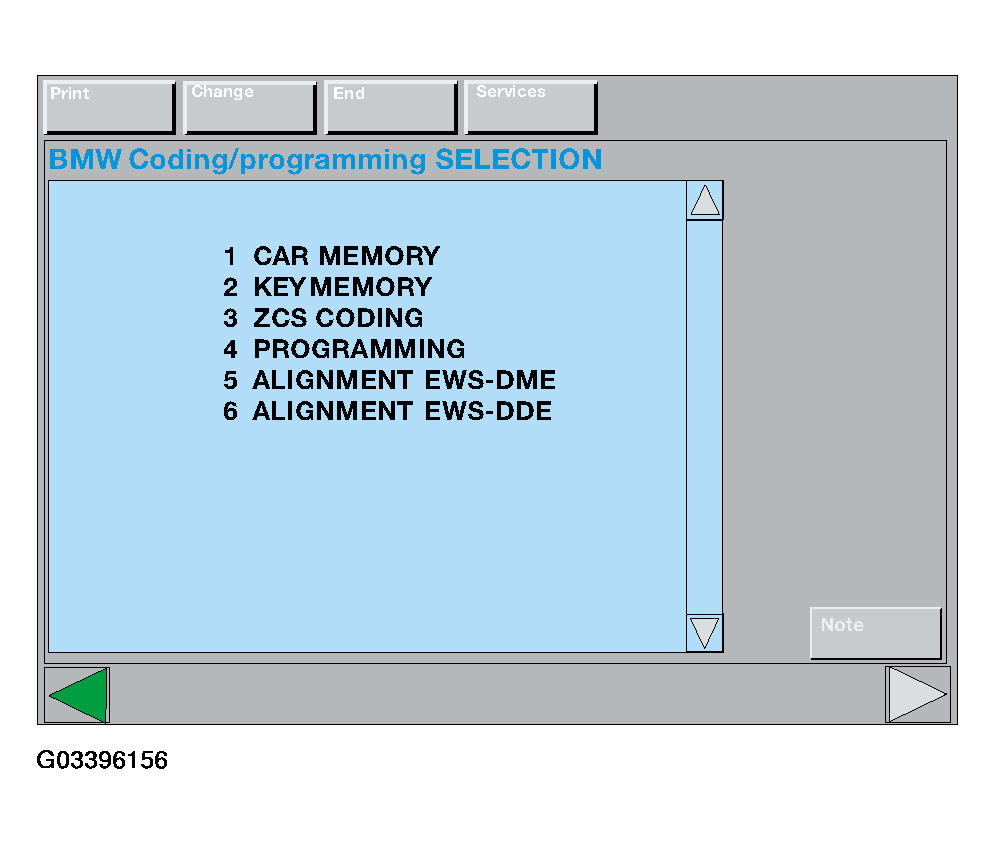

Fig 1: Coding Display (DISplus or MoDiC)

Courtesy of BMW OF NORTH AMERICA, INC.
