Crankshaft Sensor

Crankshaft sensor is a dynamic Hall-effect sensor mounted through the engine block. Signal is sent the moment the crankshaft begins to rotate. The pulse wheel is mounted directly to the crankshaft. See Fig 1.

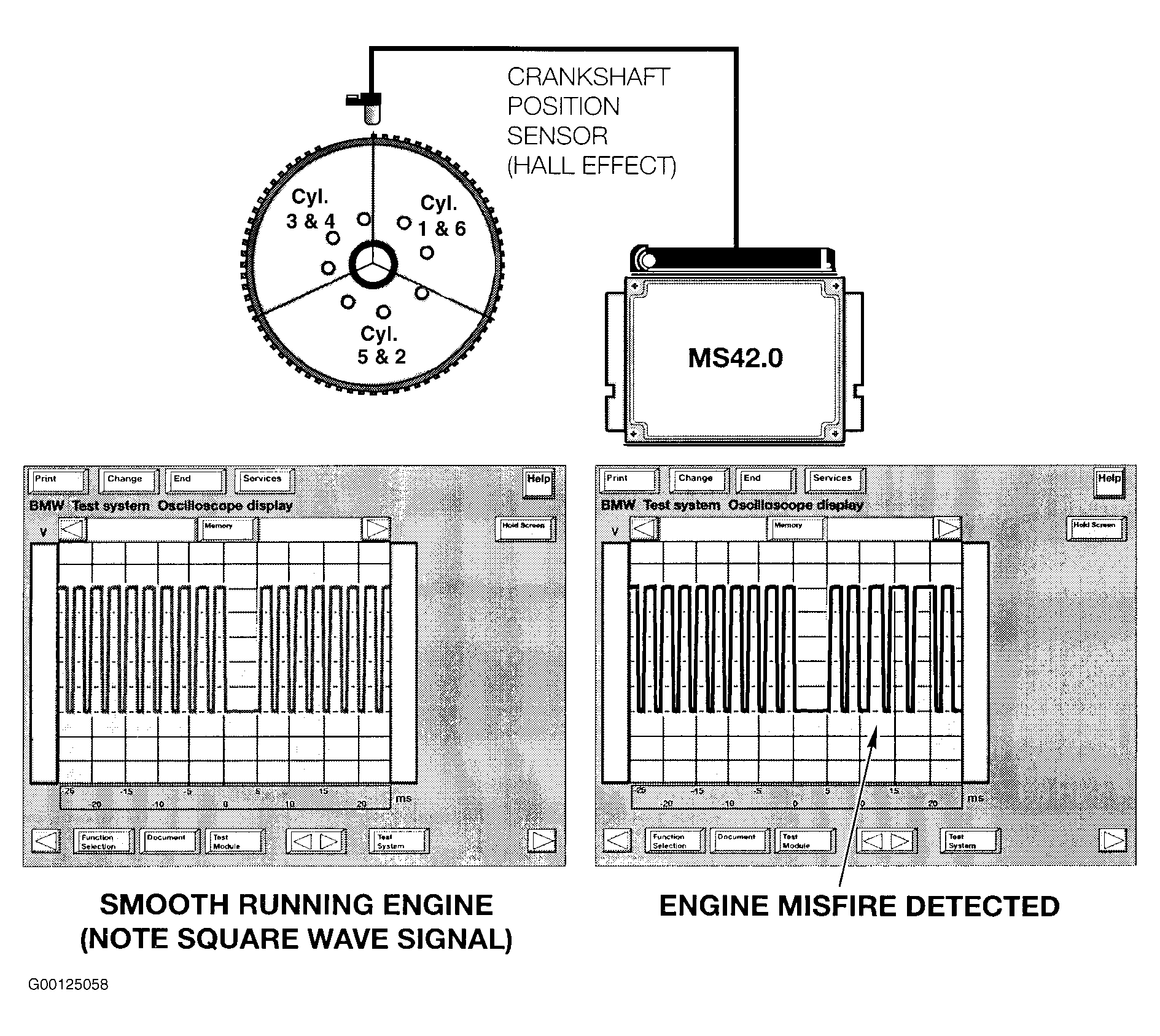

Fig 1: Identifying Crankshaft Sensor Signal

Courtesy of BMW OF NORTH AMERICA, INC.
