61 13... Repairing ribbon cables

Special Tools Required:

• 61 1 190

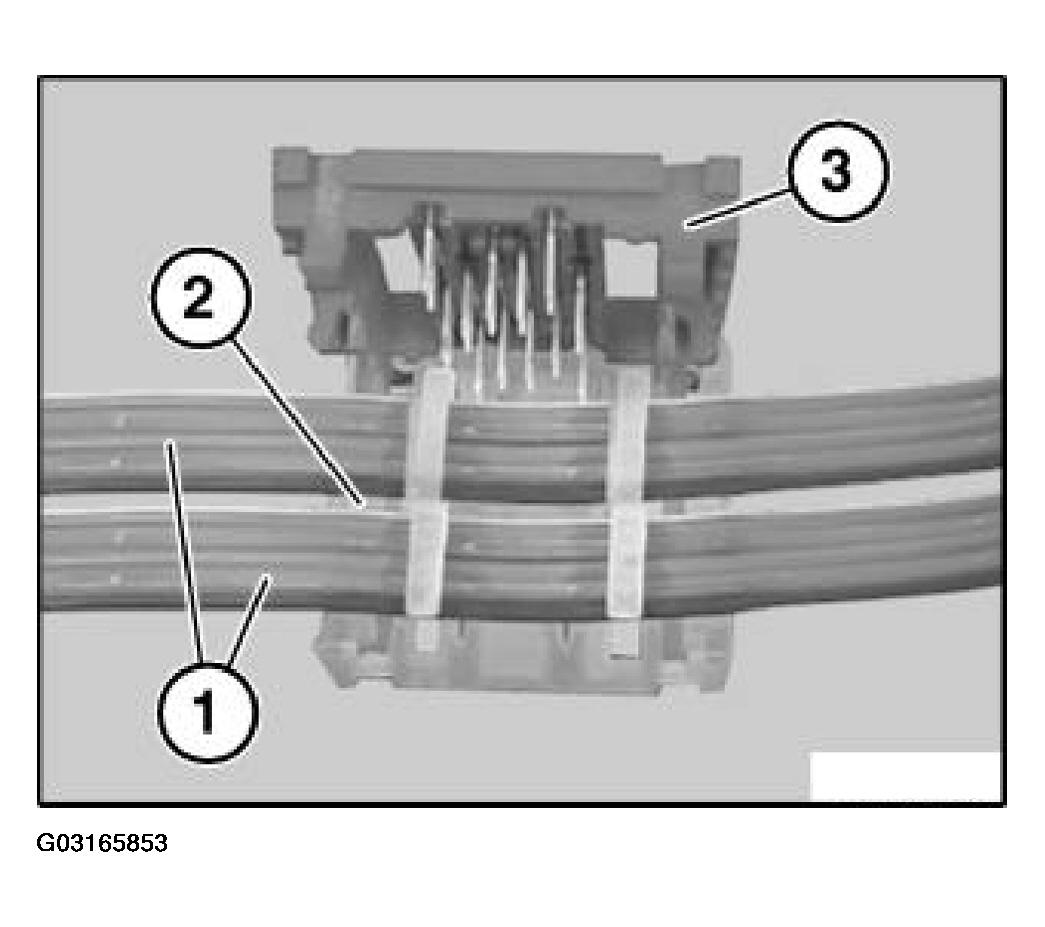

Place ribbon cables (1) in connector housing (2) and close cover (3).

Fig 1: Placing Ribbon Cables In Connector Housing

Courtesy of BMW OF NORTH AMERICA, INC.

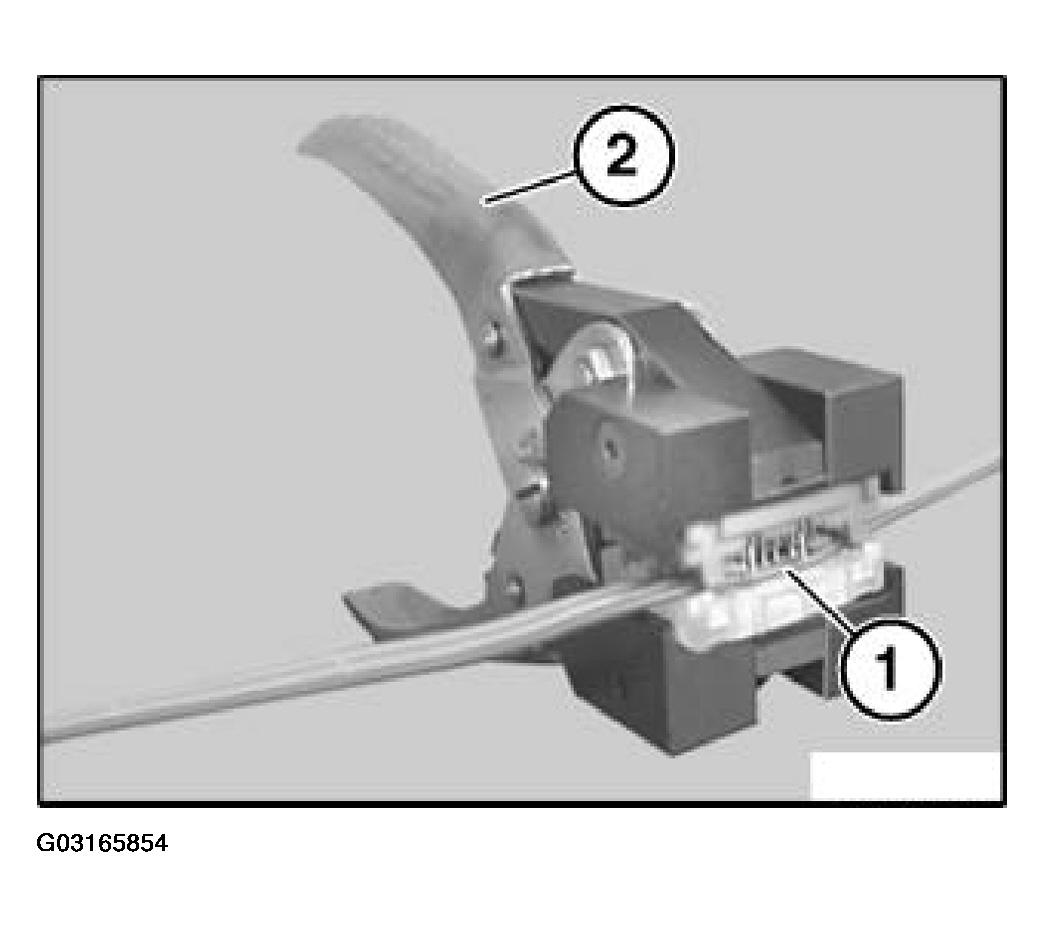

Place connector housing (1) in pliers (2).

Fig 2: Placing Connector Housing In Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Close pliers (2).
