13 00 002 Checking function of Digital Engine Electronics (DME)

Diagnostic Connector In Engine Compartment:

Connect up MoDiC or BMW DIS.

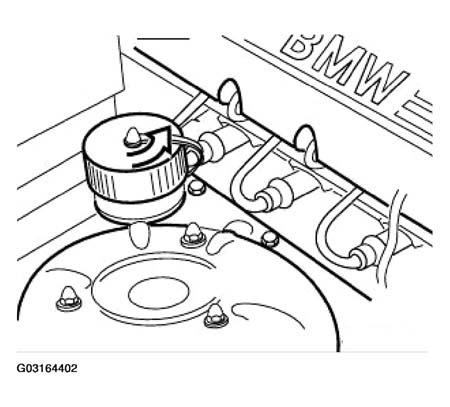

Fig 1: Identifying MoDiC Connector Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Interrogate DME fault memory.

Note down fault messages stored in memory.

Further information on troubleshooting in line with DIS or MoDiC instructions.

OBD Socket (1) In Driver's Footwell:

Same procedure as above.

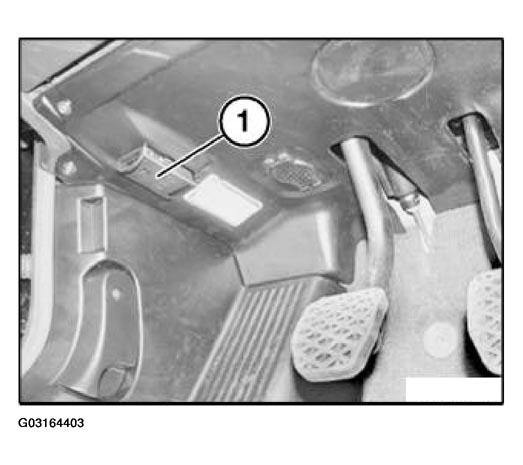

Fig 2: Identifying OBD Socket

Courtesy of BMW OF NORTH AMERICA, INC.
