Power Module: Inputs/Outputs

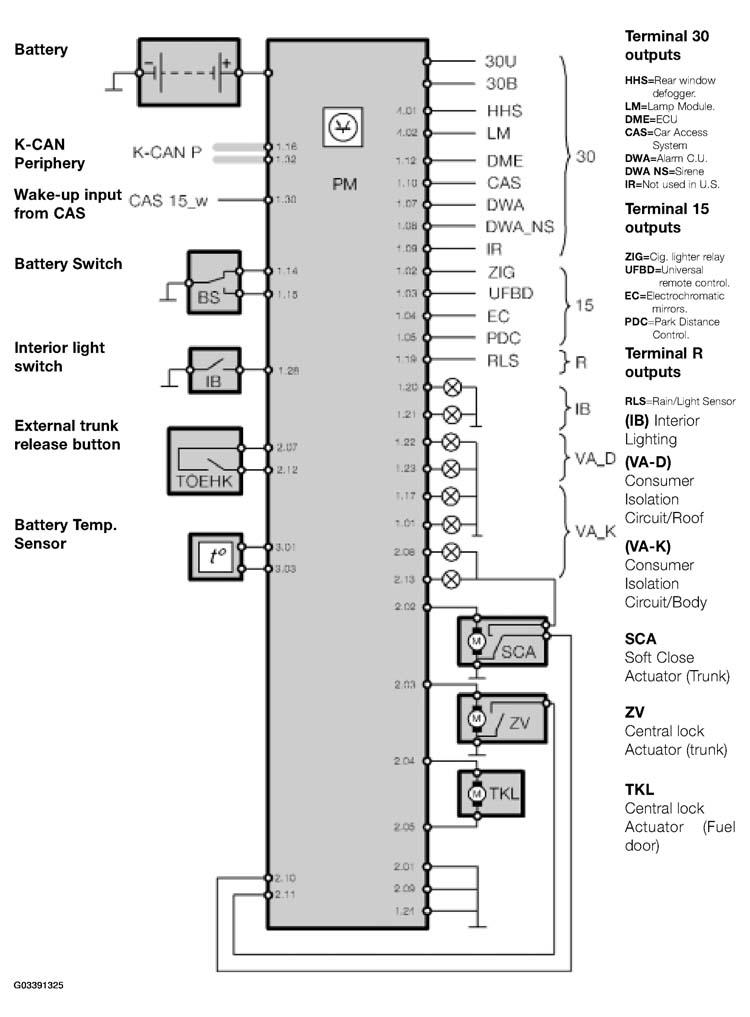

Fig 1: Identifying Power Module (Inputs/Outputs)

G03391325

Courtesy of BMW OF NORTH AMERICA, INC.
