E65 Specifications: Dimensions

The E65 is larger than it's predecessor model, the E38, the dimensions are as follows:

DIMENSION DESCRIPTIONS

Dimensions E65 E38
Length 5029mm/198in. 4964mm/195in.
Width 1902mm/74.9in. 1864mm/73.3in
Height 1470mm/57.8in. 1410mm/55.4in
Wheelbase 2090mm/117.7in. 2030mm/115.1in.
Curb weight 1945kg/4288lb 1930kg/4255lb

The E65 is 45mm longer, 38mm wider and 60mm taller than the E38. The wheelbase of the E65 is also 60mm longer than that of the E38.

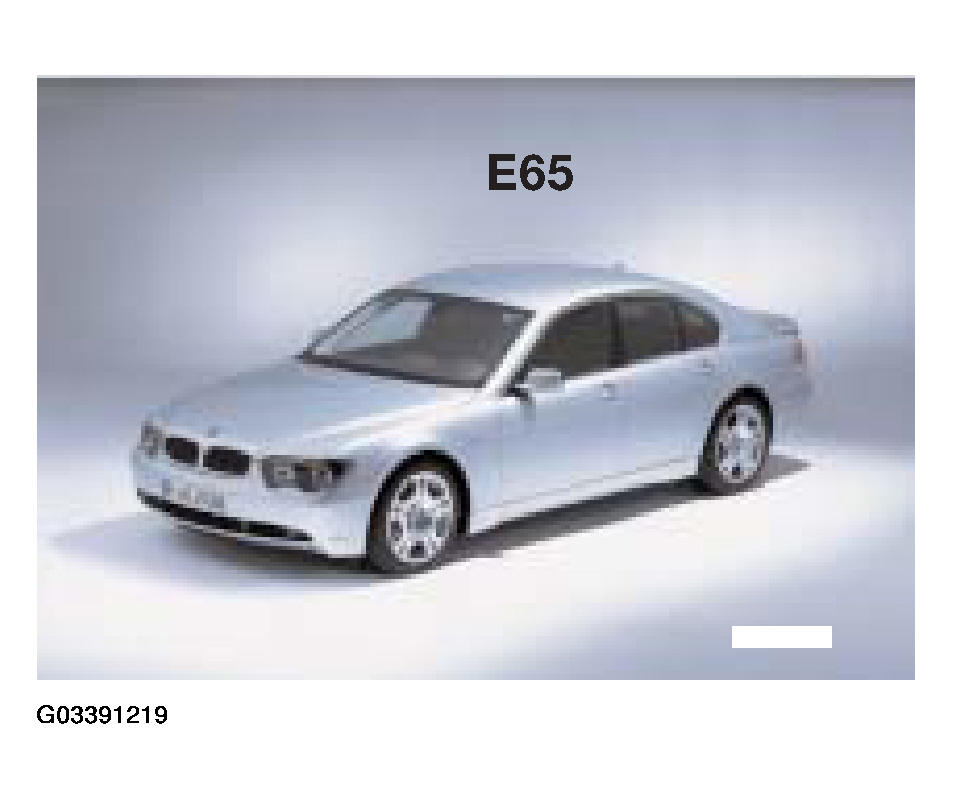

Fig 1: Identifying BMW (E65 Model)
G03391219Courtesy of BMW OF NORTH AMERICA, INC.

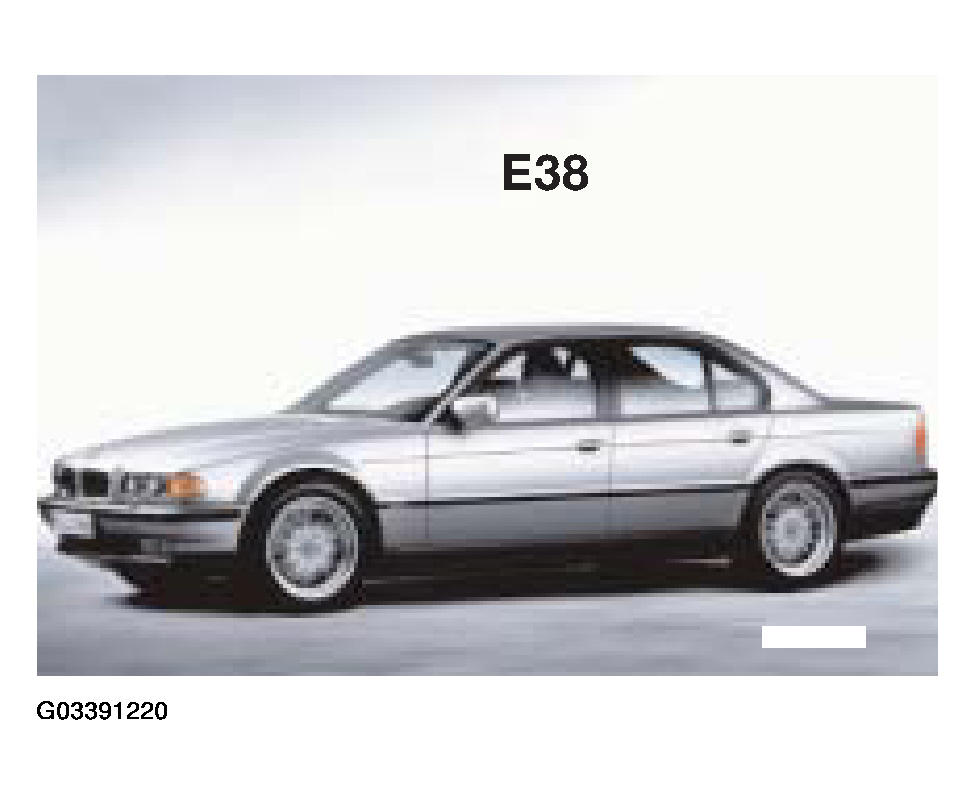

Fig 2: Identifying BMW (E38 Model)
G03391220Courtesy of BMW OF NORTH AMERICA, INC.
