Garage Dimensions

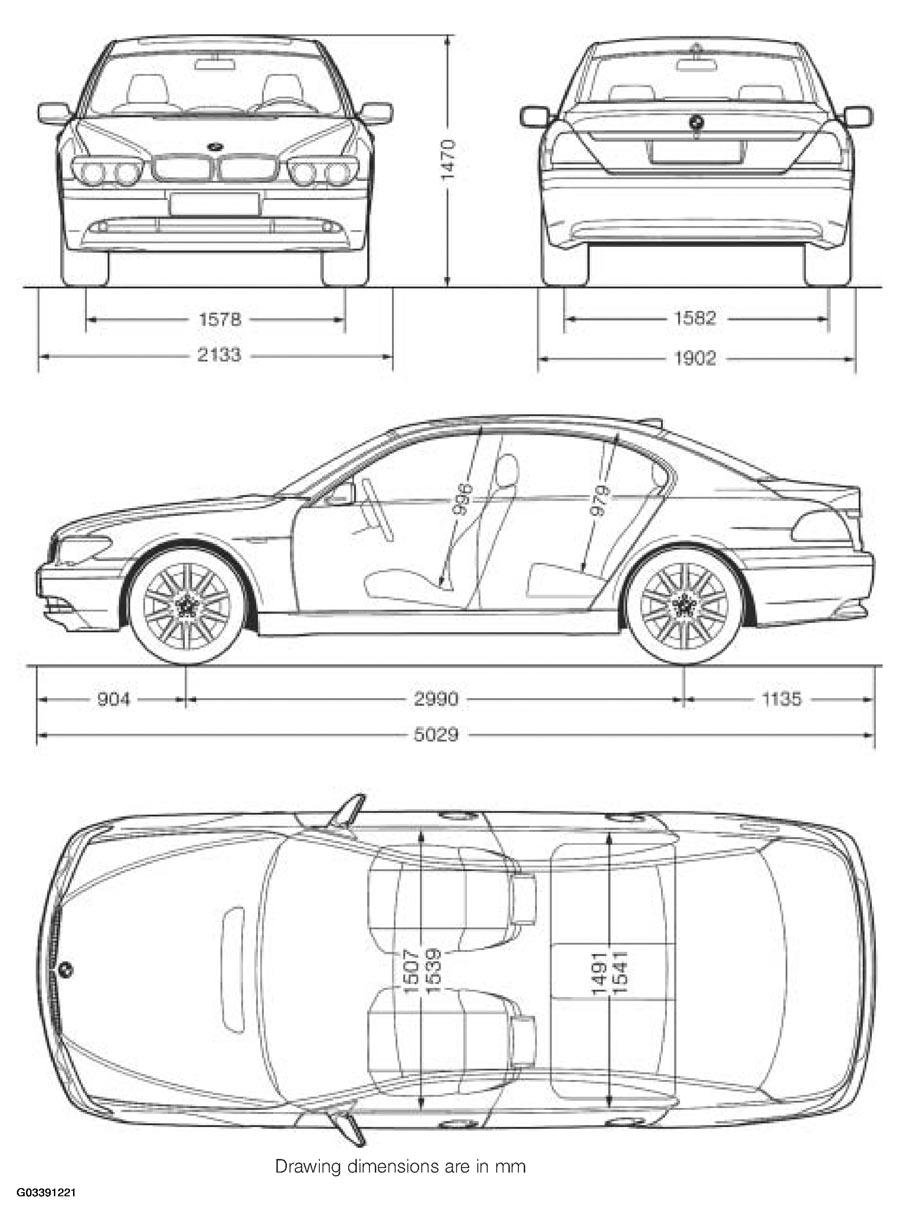

Fig 1: Identifying Garage Dimensions (1 Of 2)
G03391221Courtesy of BMW OF NORTH AMERICA, INC.

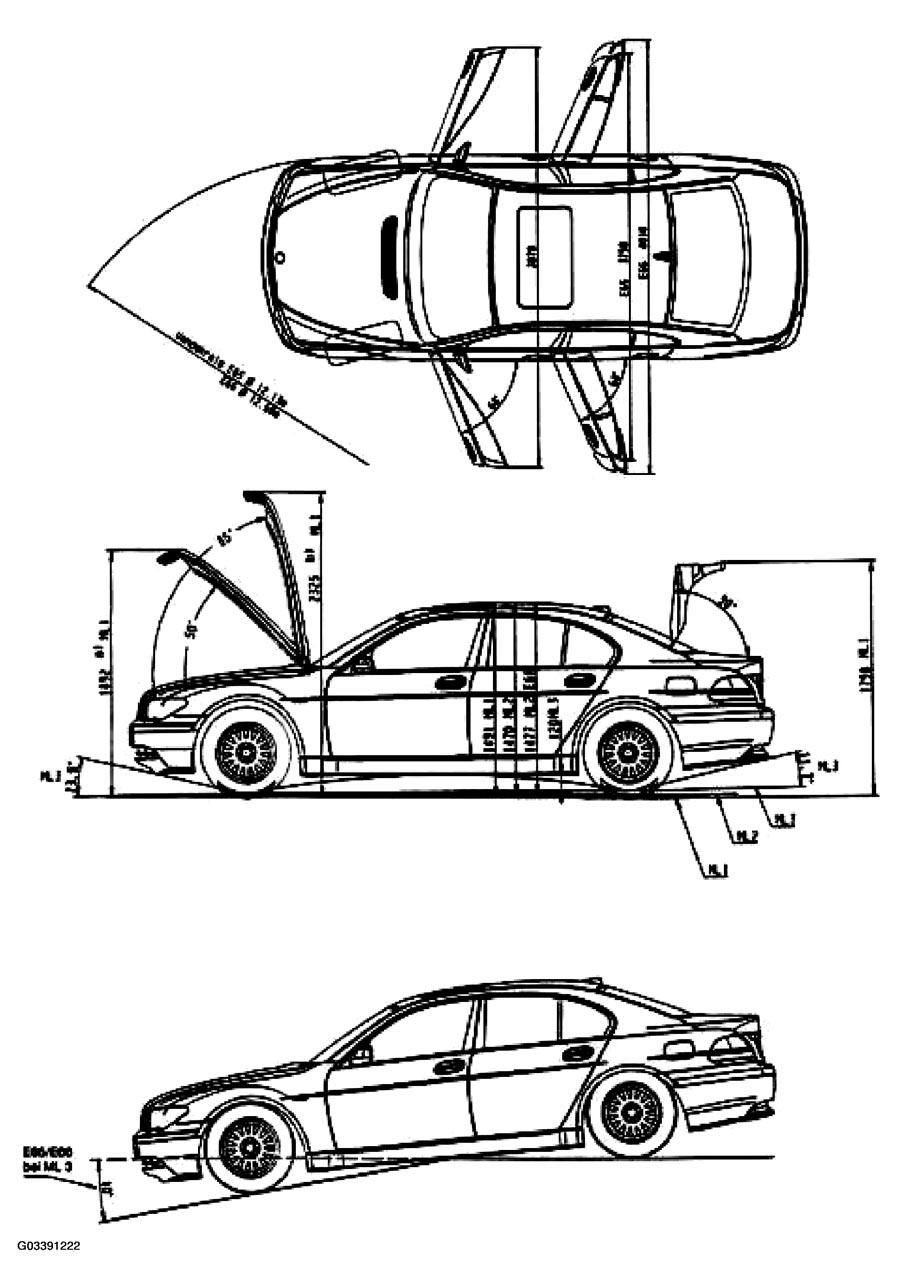

Fig 2: Identifying Garage Dimensions (2 Of 2)
G03391222Courtesy of BMW OF NORTH AMERICA, INC.
