LSZ Functions: Notes

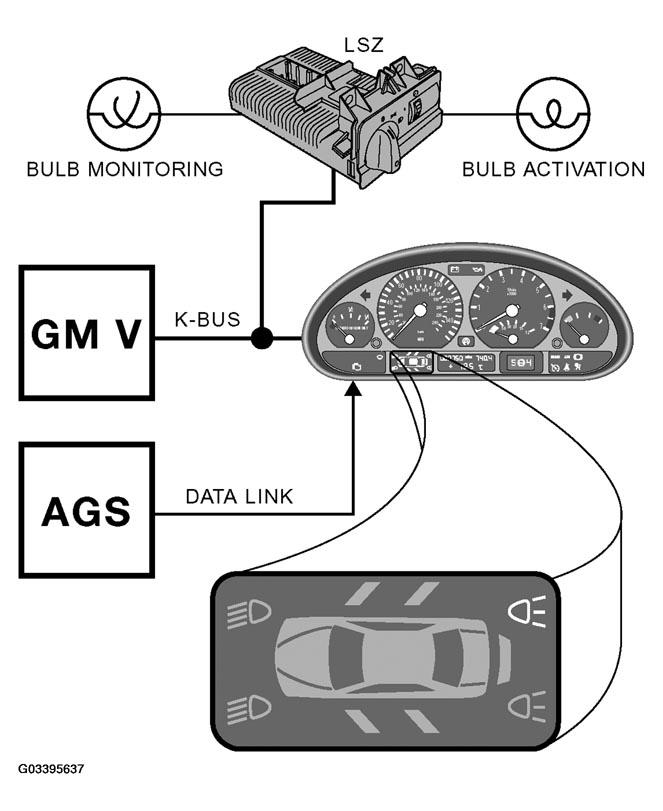

The LSZ provides the functions of the LCM including:
- Hot and cold monitoring of the exterior lights.
- Emergency lighting function
- Short circuit protection
- Redundant storage of mileage and SI data
The total scope of the LSZ system includes the following:

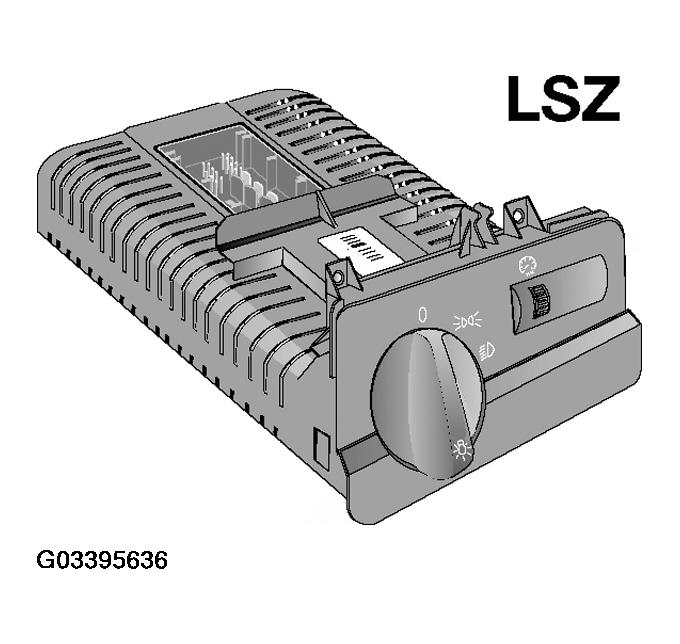

- LSZ control module
- LSZ switch assembly
- High-low beam/turn signal switch
- Brake light switch
- Hazard warning light switch
- Fog light relay
- Exterior lights
- Dash/LCD lighting
